Removal And Installation: Notes

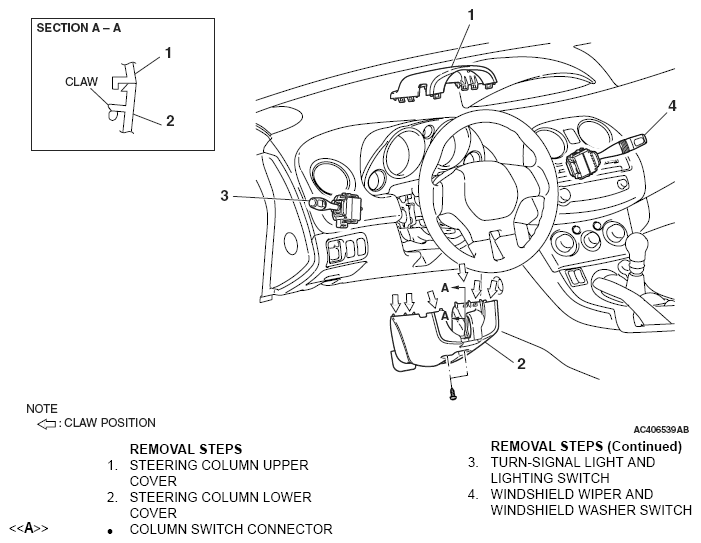

Fig 1: Removal/Installation Of Column Switch
G05106352Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
