Home >> Mitsubishi >> 2008 >> Outlander XLS, FWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System >> Camshaft Position Sensor >> Removal And Installation < 3.0L Engine > >> Notes

Removal And Installation < 3.0L Engine >: Notes

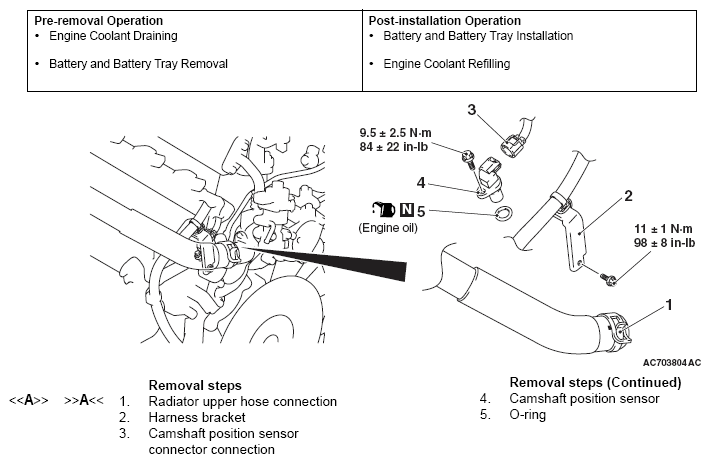

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications - 3.0L Engine
G05431173Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
