Disassembly And Reassembly: Notes

NOTE: For additional service information, refer to TSB APPLICATION OF SILICONE GREASE ADDED - SERVICE MANUAL REVISION .

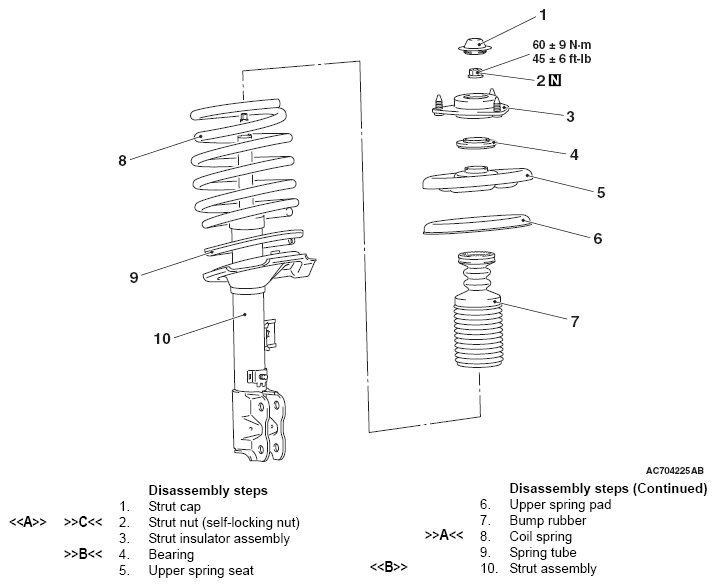

Fig 1: Disassembling/Assembling View Of Strut Assembly
G05432353Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
