Disassembly And Assembly

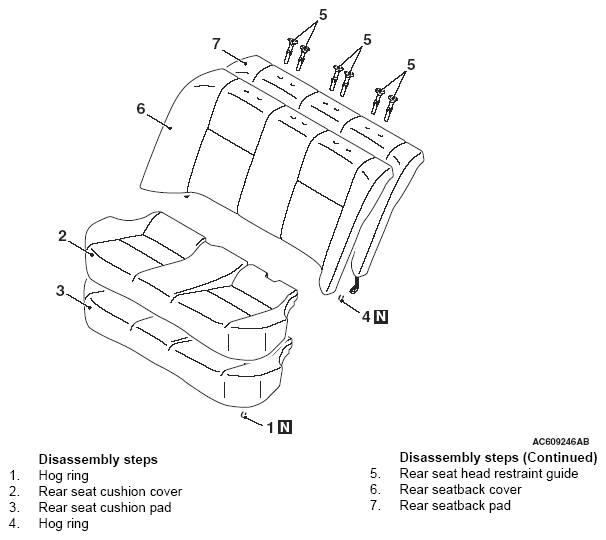

Fig 1: Identifying Rear Seat Assembly Disassembling / Assembling Components (1 Of 2)
G05384624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

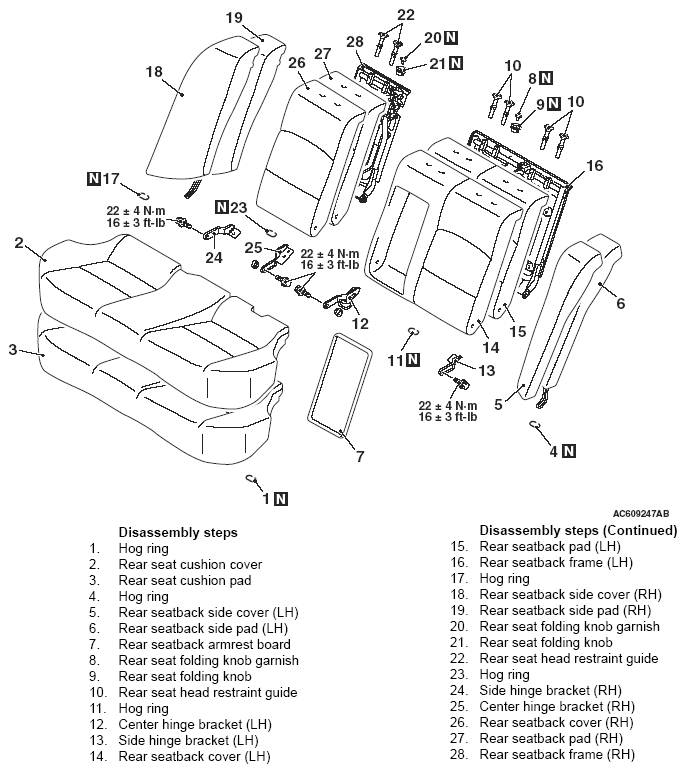

Fig 2: Rear Seat Assembly Disassembling / Assembling Replacement Components With Torque Specifications (2 Of 2)
G05384625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
