Mitsubishi
>>
2008
>>
Lancer GTS, Automatic CVT
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior - Lancer
>>
Floor Console Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

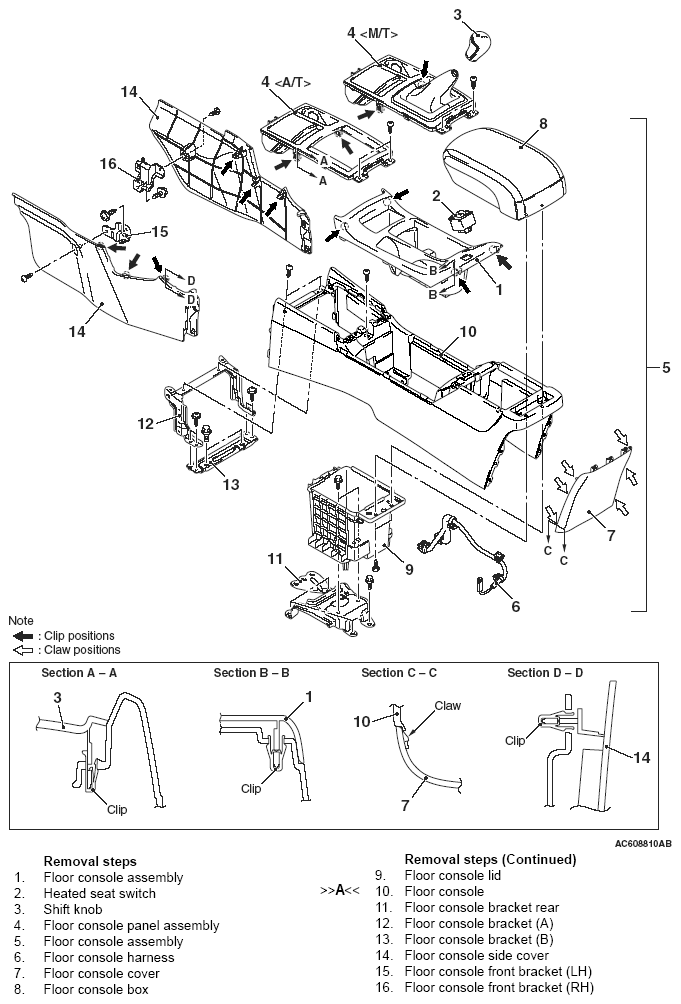

Fig 1: Identifying Floor Console Assembly Remove / Install Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
