Home >> Mitsubishi >> 2008 >> Lancer GTS, Automatic CVT >> Repair and Diagnosis >> Maintenance >> Procedures >> General -- Lancer >> Vehicle Identification >> Vehicle Identification Code Plate >> Chassis Number >> Locations

Chassis Number: Locations

Fig 1: Identifying Theft-Protection Label Location (1 Of 4)
G05373974Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

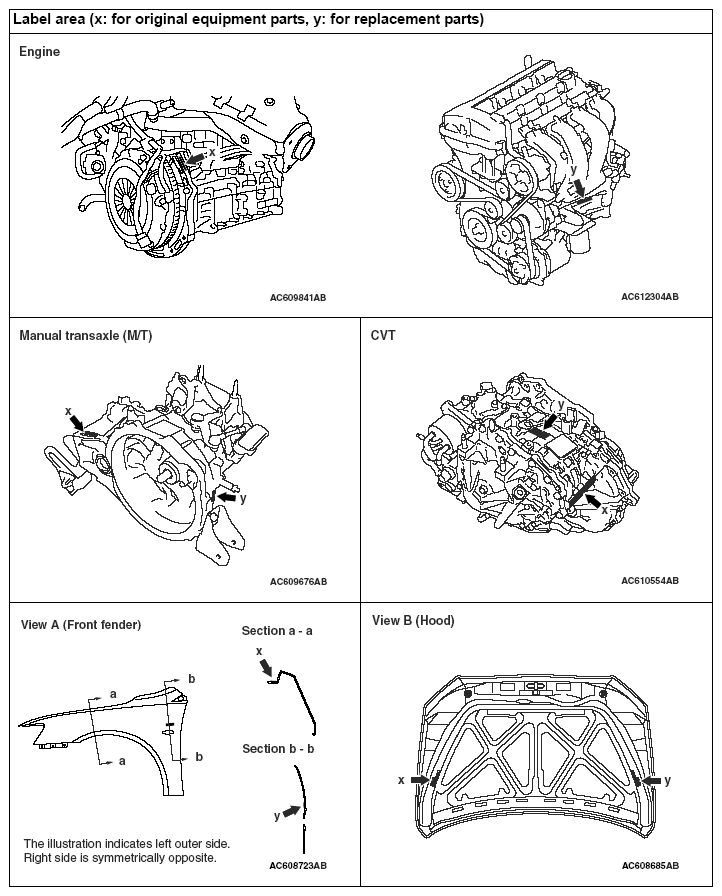

Fig 2: Identifying Theft-Protection Label Location (2 Of 4)
G05373975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

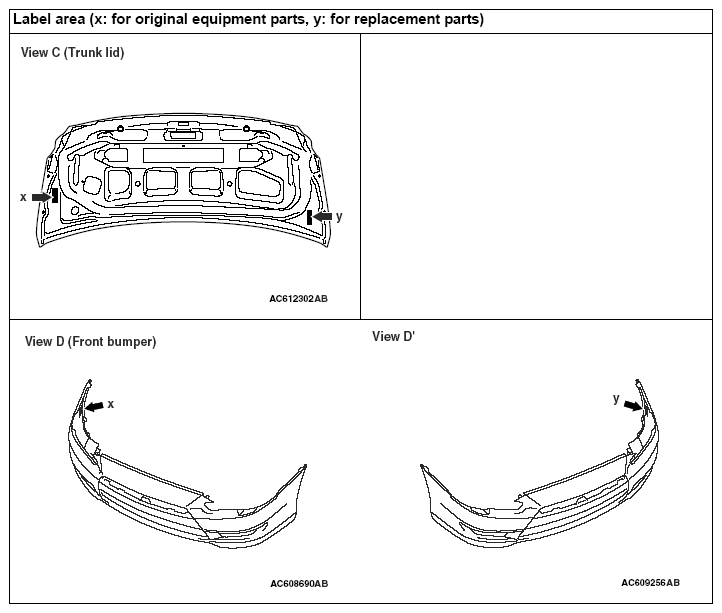

Fig 3: Identifying Theft-Protection Label Location (3 Of 4)
G05373976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

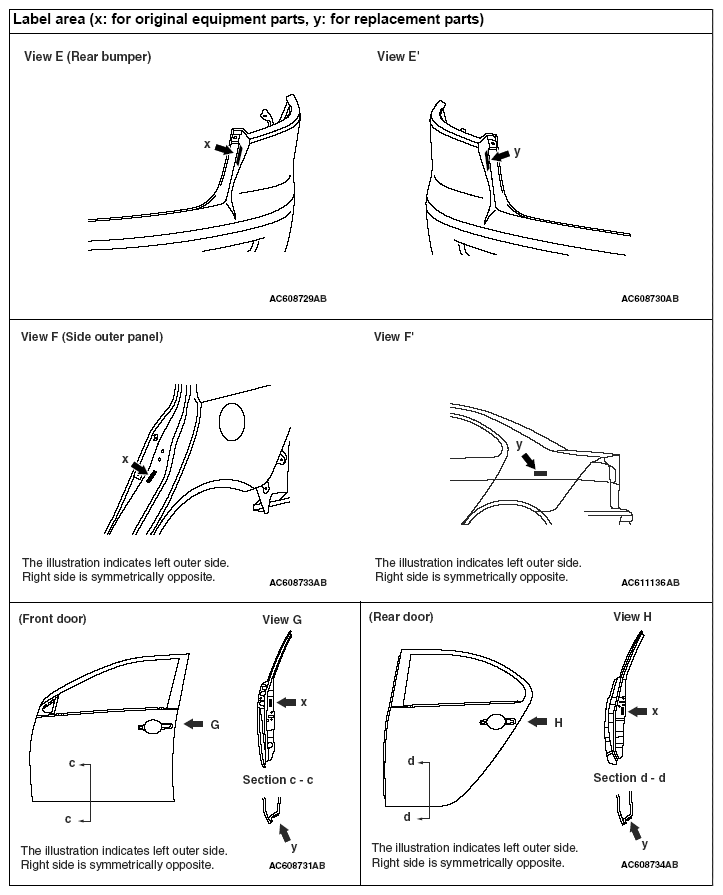

Fig 4: Identifying Theft-Protection Label Location (4 Of 4)
G05373977Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
