Removal And Installation

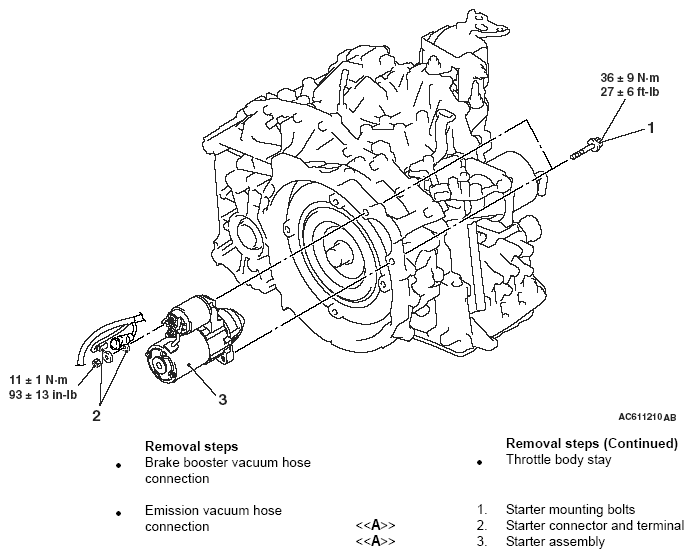

STARTER MOTOR ASSEMBLY COMPONENTS REMOVAL STEPS
Pre-removal operation
- Air Cleaner Intake Duct and Air Cleaner Intake Hose Removal (Refer to
AIR CLEANER
).
- Battery and Battery Tray Removal
- Engine Room Under Cover Front A Removal (Refer to
UNDER COVER
).
|
Post-installation operation
- Engine Room Under Cover Front A Installation (Refer to
UNDER COVER
).
- Battery and Battery Tray Installation
- Air Cleaner Intake Duct and Air Cleaner Intake Hose Installation (Refer to
AIR CLEANER
).
|
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
