Home >> Mitsubishi >> 2008 >> Lancer GTS, Automatic CVT >> Repair and Diagnosis >> Electrical >> Starter >> Starting System - Lancer >> Starting System >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

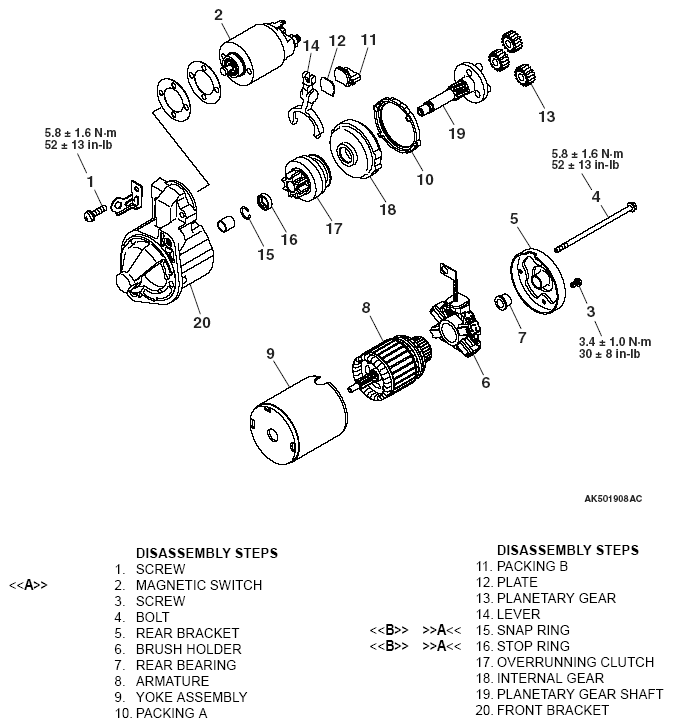

Fig 1: Starter Motor Assembly Disassemble/Assemble Replacement Components With Torque Specifications

G05375437

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
