Disassembly And Assembly: Notes

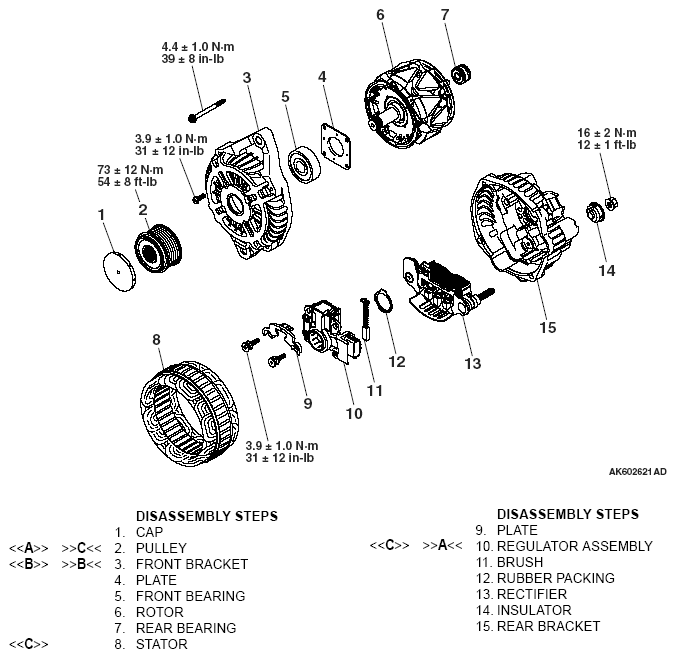

Fig 1: Generator Assembly Disassemble/Assemble Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992226: Serration Socket
