Twin Clutch SST Specifications - Lancer Evolution
>>
Transfer
>>
Disassembly And Assembly
Disassembly And Assembly

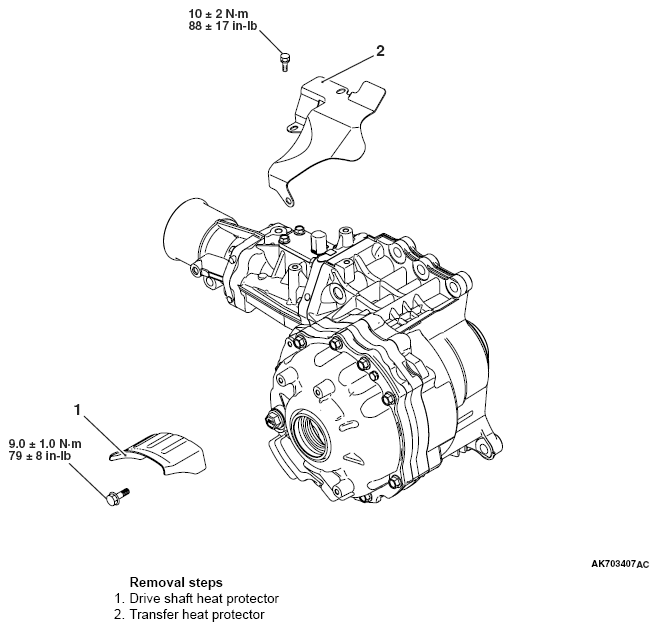

Fig 1: Drive Shaft Heat Protector And Transfer Heat Protector With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
