Disassembly And Assembly

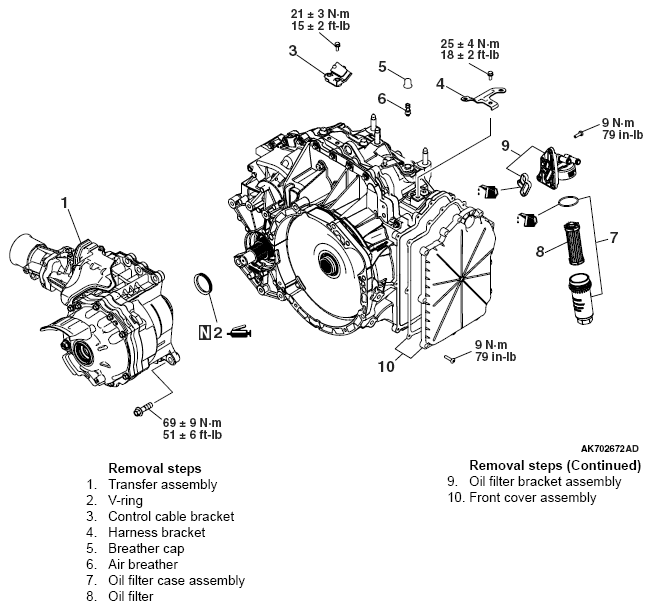

Fig 1: External Transaxle Replacement Components With Torque Specifications
G05394283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Only if damaged, the oil filter case assembly, the oil filter bracket assembly and the front cover assembly are replaced.
