Removal And Installation: Notes

CAUTION:

Before removing the steering wheel assembly and driver's air bag module/knee air bag module, always refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING or KNEE AIR BAG MODULE .)
After installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION .)

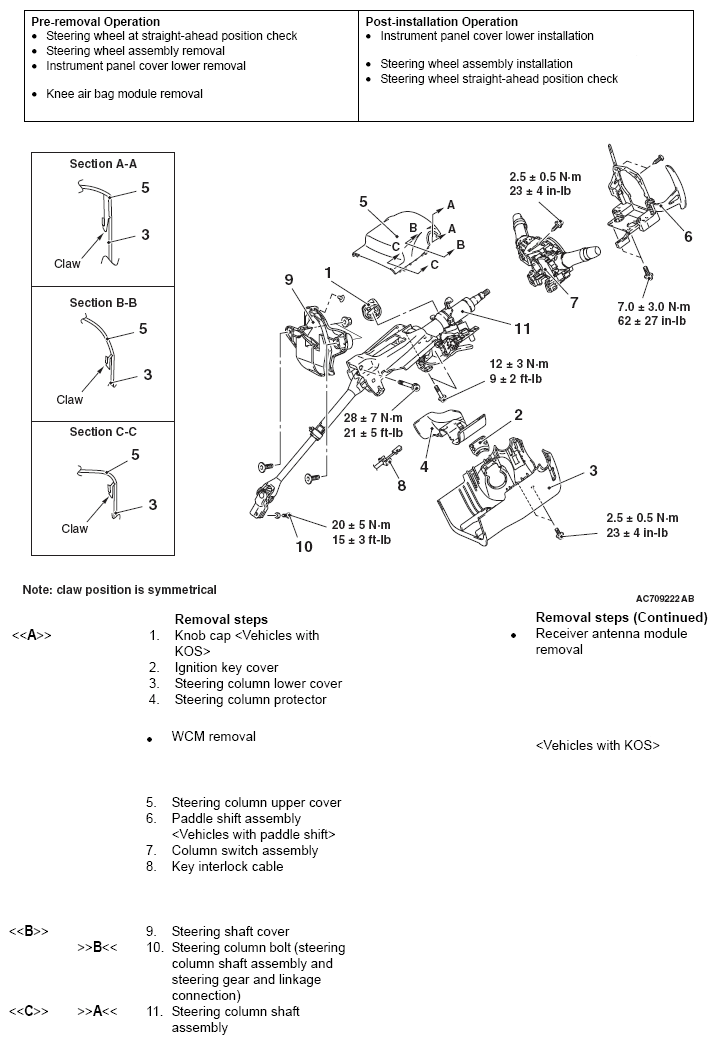

Fig 1: Steering Shaft Removal And Installation Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
