Electrical Component Locator - Lancer Evolution: Motors
MOTORS LOCATION
| Component | Location |
|---|---|

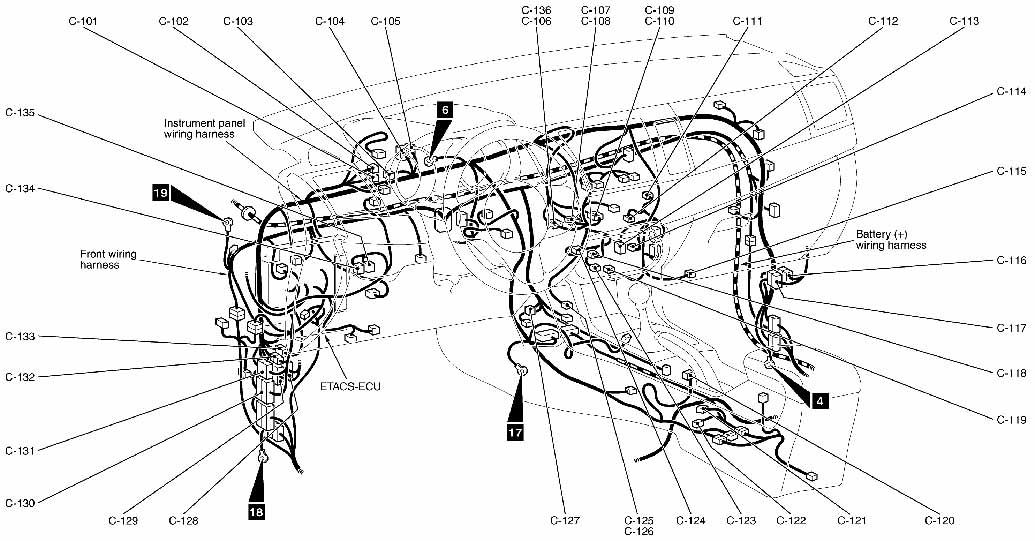

| Air Mixing Damper Control Motor (C-114) | Behind right side of dash. See Figure. |
| Blower Motor (C-115) | Under right side of dash. See Figure. |

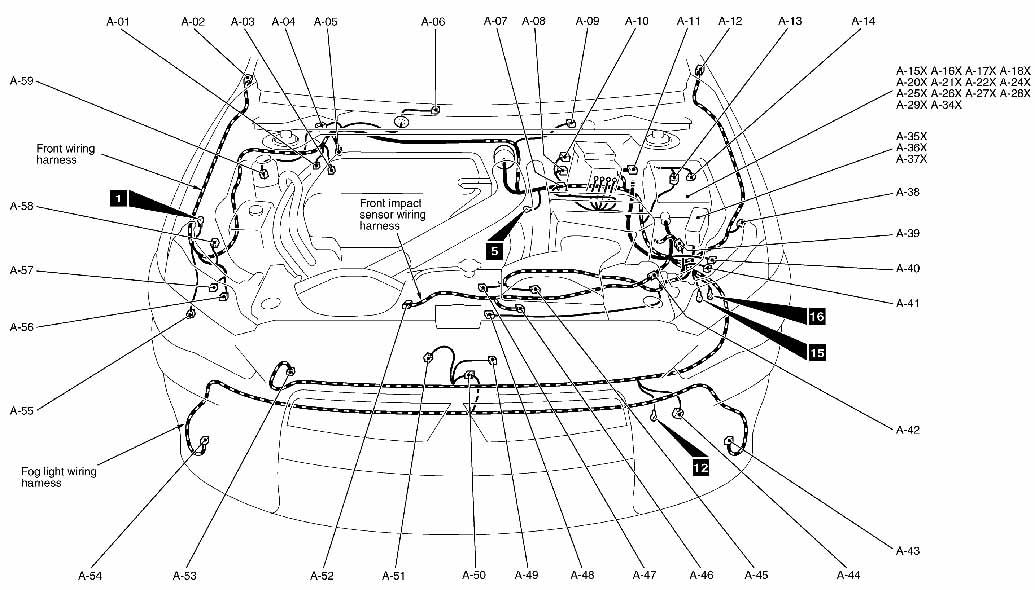

| Condenser Fan Motor (A-47) | Behind radiator. See Figure. |

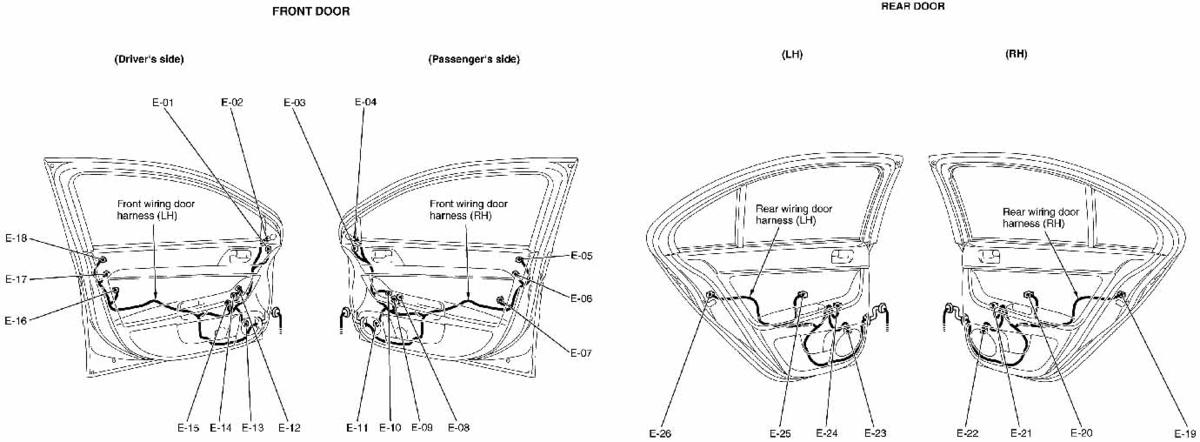

| Door Lock Actuator (Left Front) (E-17) | Rear of driver's door. See Figure. |
| Door Lock Actuator (Left Rear) (E-26) | Rear of left rear door. See Figure. |
| Door Lock Actuator (Right Front) (E-07) | Rear of front passenger's door. See Figure. |
| Door Lock Actuator (Right Rear) (E-19) | Rear of right rear door. See Figure. |

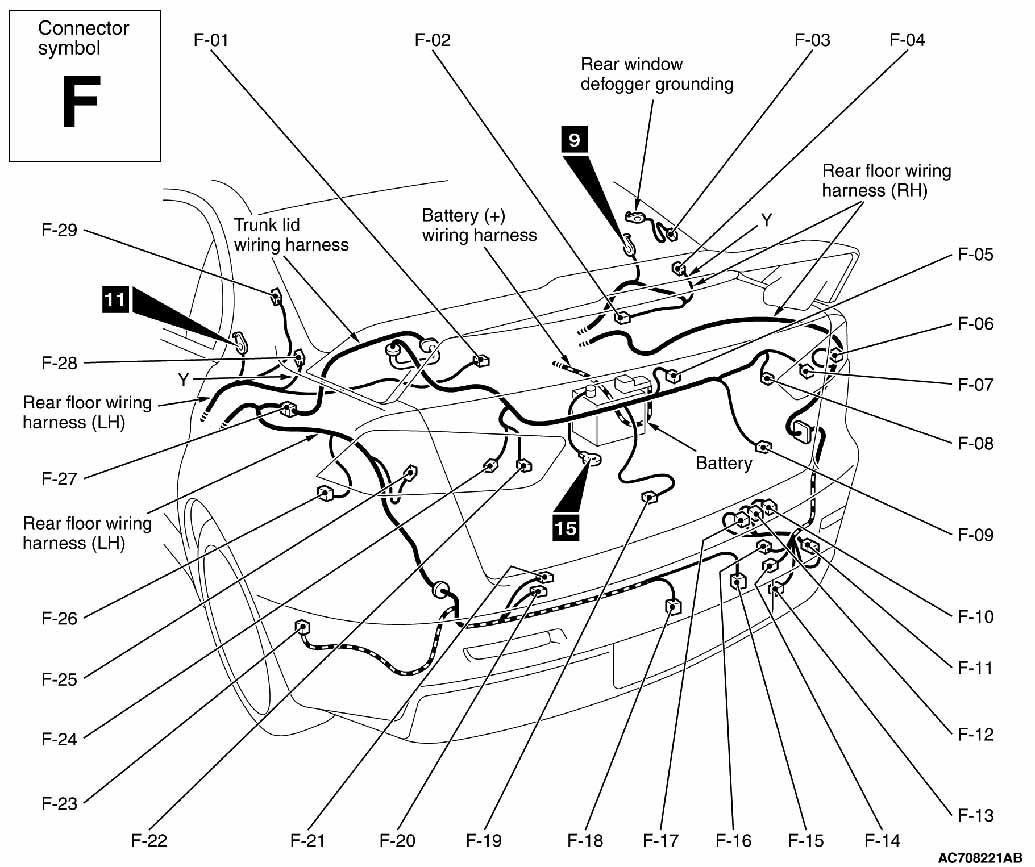

| Electric Pump (F-14) | Right rear of luggage compartment. See Figure. |
| Mode Selection Damper Control Motor (C-112) | Behind right side of dash. See Figure. |
| Outside/Inside Selection Damper Control Motor (C-111) | Behind right side of dash. See Figure. |
| Power Window Motor (Left Front) (E-14) | Center of driver's door. See Figure. |
| Power Window Motor (Left Rear) (E-25) | Center of left rear door. See Figure. |
| Power Window Motor (Right Front) (E-10) | Center of front passenger's door. See Figure. |
| Power Window Motor (Right Rear) (E-20) | Center of right rear door. See Figure. |
| Radiator Fan Motor (A-45) | Behind radiator. See Figure. |
| Sun Roof Motor (D-06) | Center front of headliner. See Figure. |

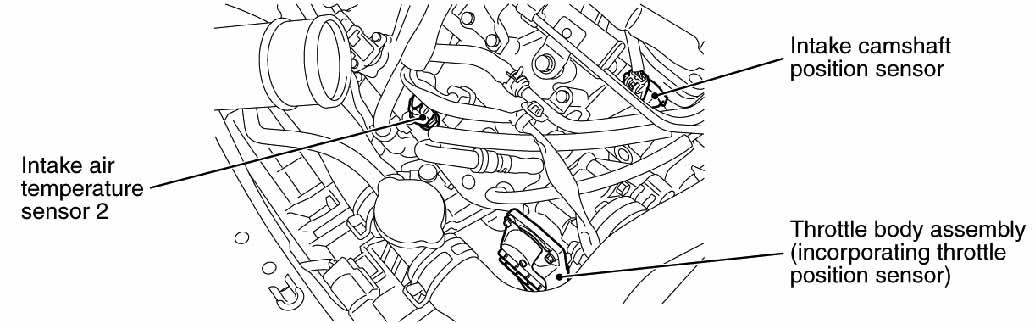

| Throttle Body Assembly | Top rear of engine. See Figure. |
| Washer Motor (D20) | In washer fluid reservoir. See Figure. |
| Windshield Wiper Motor (A-06) | Center rear of engine compartment. See Figure. |
