Removal And Installation

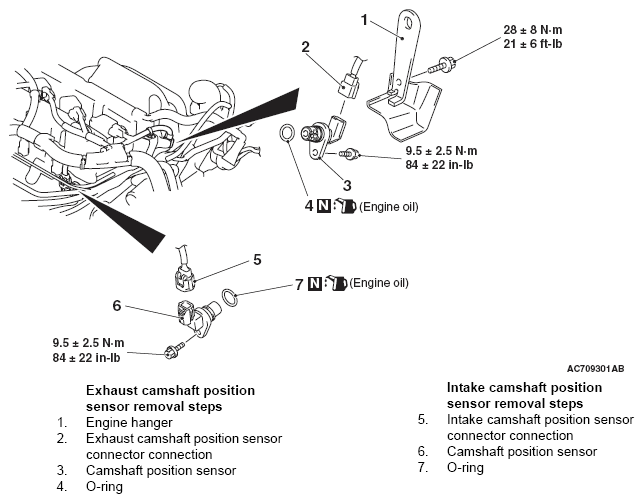

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
G05393759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
