Removal And Installation: Notes

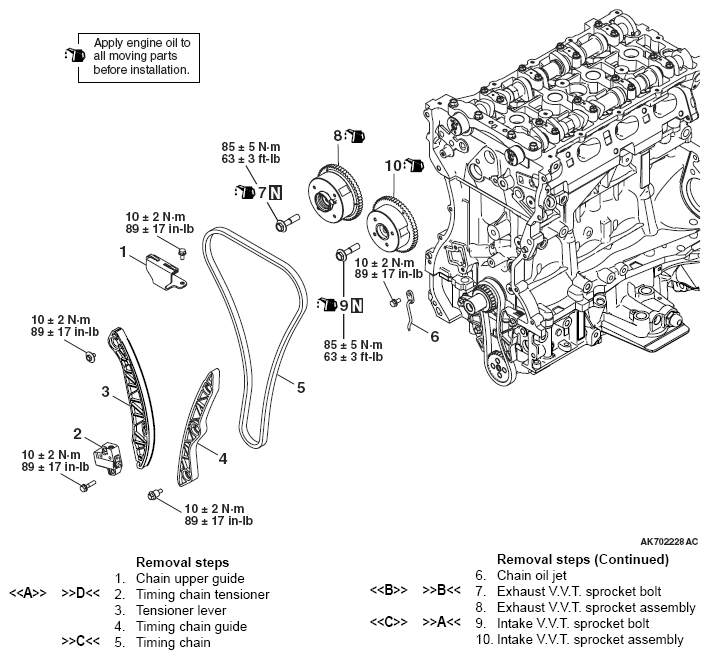

Fig 1: Timing Chain Replacement Components With Torque Specifications

G05392552

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
