Removal And Installation: Notes

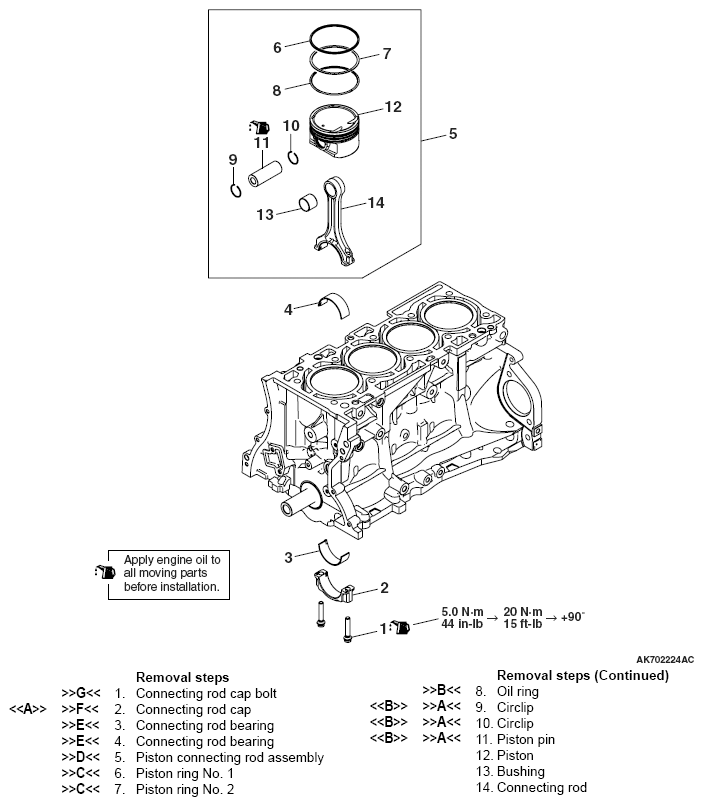

Fig 1: Piston And Connecting Rod Replacement Components With Torque Specifications
G05392622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
