Removal And Installation: Notes

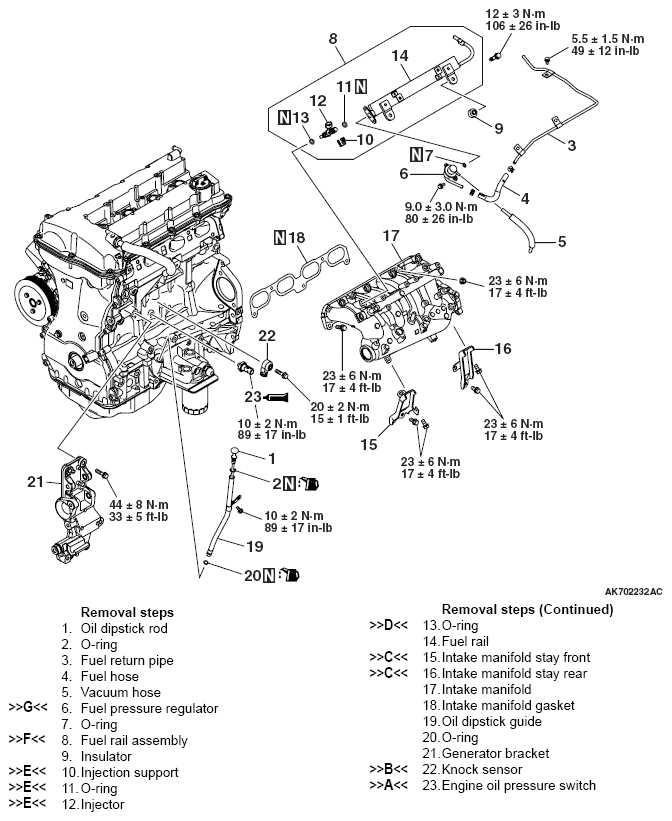

Fig 1: Intake Manifold And Fuel System Remove / Install Replacement Components With Torque Specifications
G05392516Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
