Removal And Installation: Notes

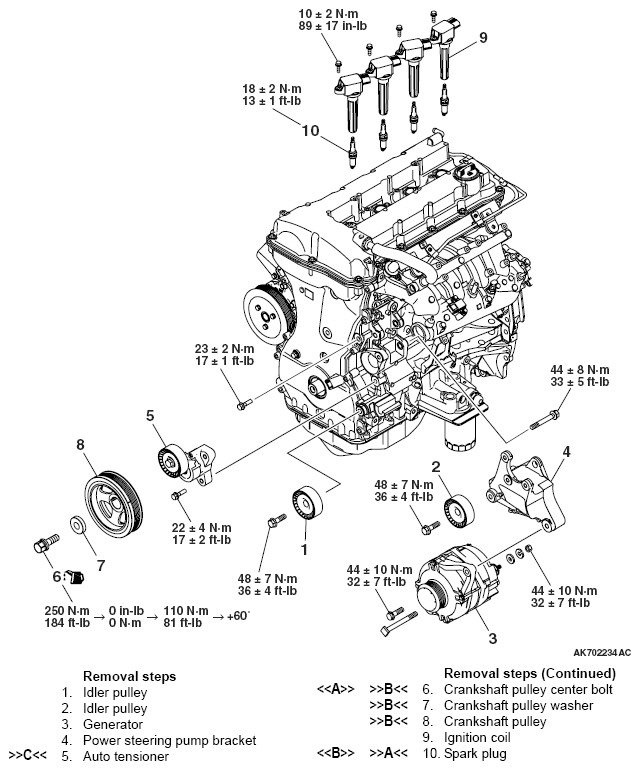

Fig 1: Generator And Ignition System Remove / Install Replacement Components With Torque Specifications
G05392504Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
