Charging System - Lancer Evolution
>>
Charging System
>>
Generator Assembly
>>
Removal And Installation
Removal And Installation

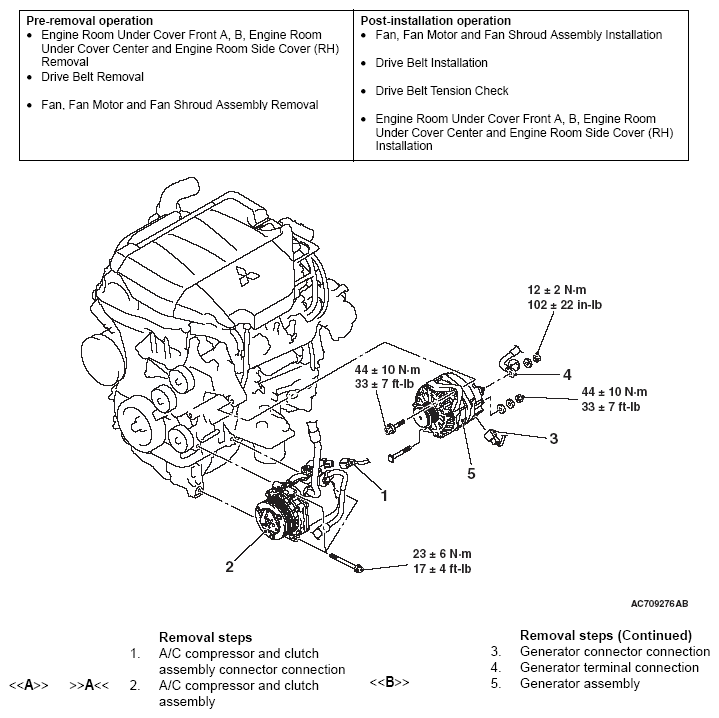

Fig 1: Generator Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
