Special Tools

SPECIAL TOOLS CHART

Tool Tool number and name Supersession Application
G05106141Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

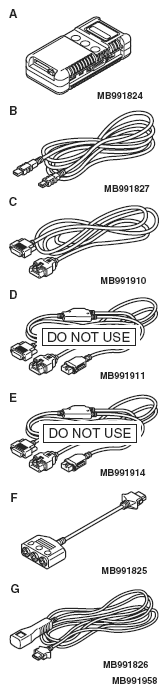

 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

Scan tool (M.U.T.-III sub assembly)
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Daimler Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Communication line check (ECU check and service data)
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
G05384141Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991223 Harness set
  1. MB991219 Test harness
  2. MB991220 LED harness
  3. MB991221 LED harness adapter
  4. MB991222 Probe
 General service tools Making voltage and resistance measurement during troubleshooting
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G05395011Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992006 Extra fine probe - Making voltage and resistance measurement during troubleshooting
