Home >> Mitsubishi >> 2008 >> Lancer Evolution MR >> Repair and Diagnosis >> Body & Frame >> Windows >> Body - Lancer Evolution >> Hood >> Hood >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

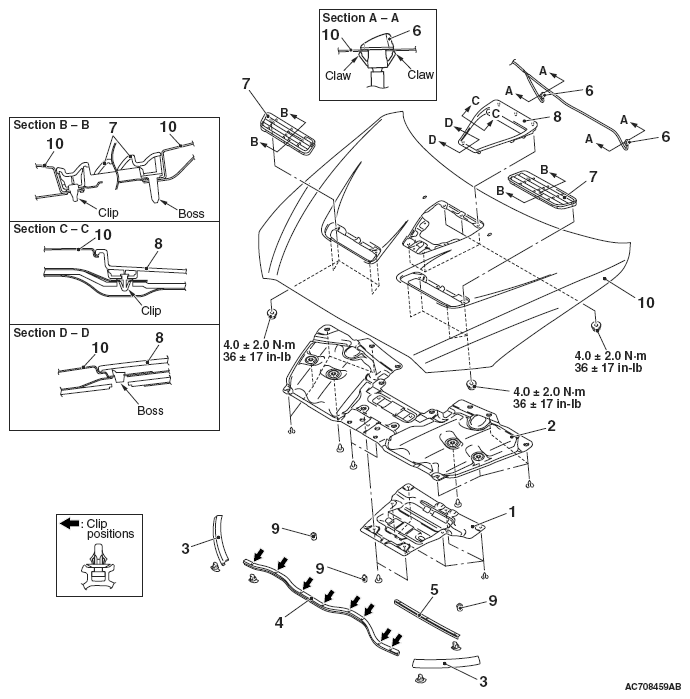

Fig 1: Disassembling View Of Hood
G05394832Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

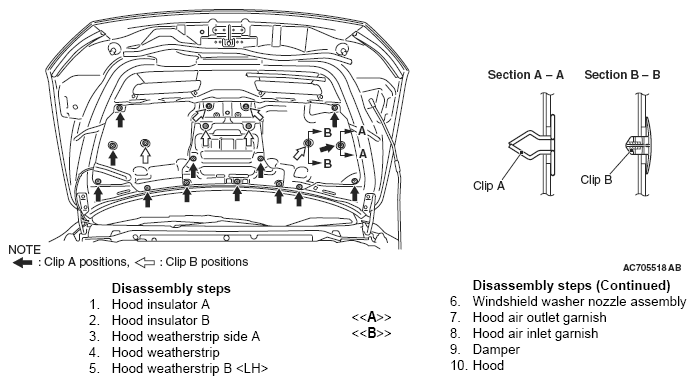

Fig 2: Identifying Hood Components
G05394833Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
