Disassembly And Reassembly: Notes

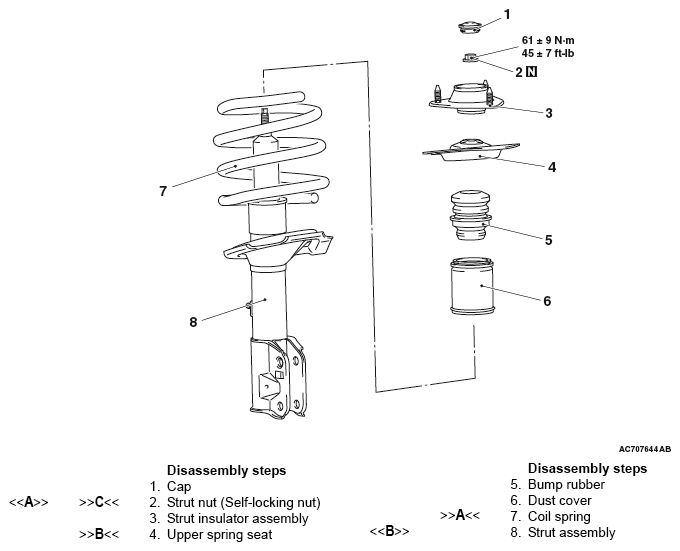

Fig 1: Strut Assembly Replacement Components With Torque Specifications

G05394491

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
