Mitsubishi
>>
2008
>>
Galant Ralliart
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Rear Seat Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

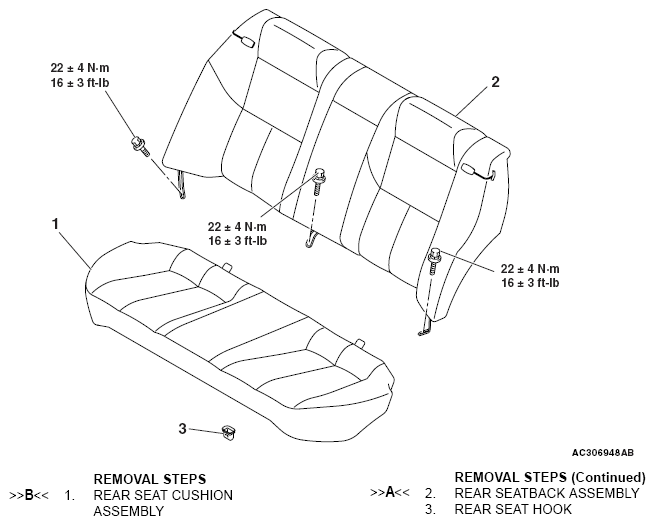

Fig 1: Removing/Installing Rear Seat Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
