Removal And Installation < 3.8L Engine - MIVEC>: Notes

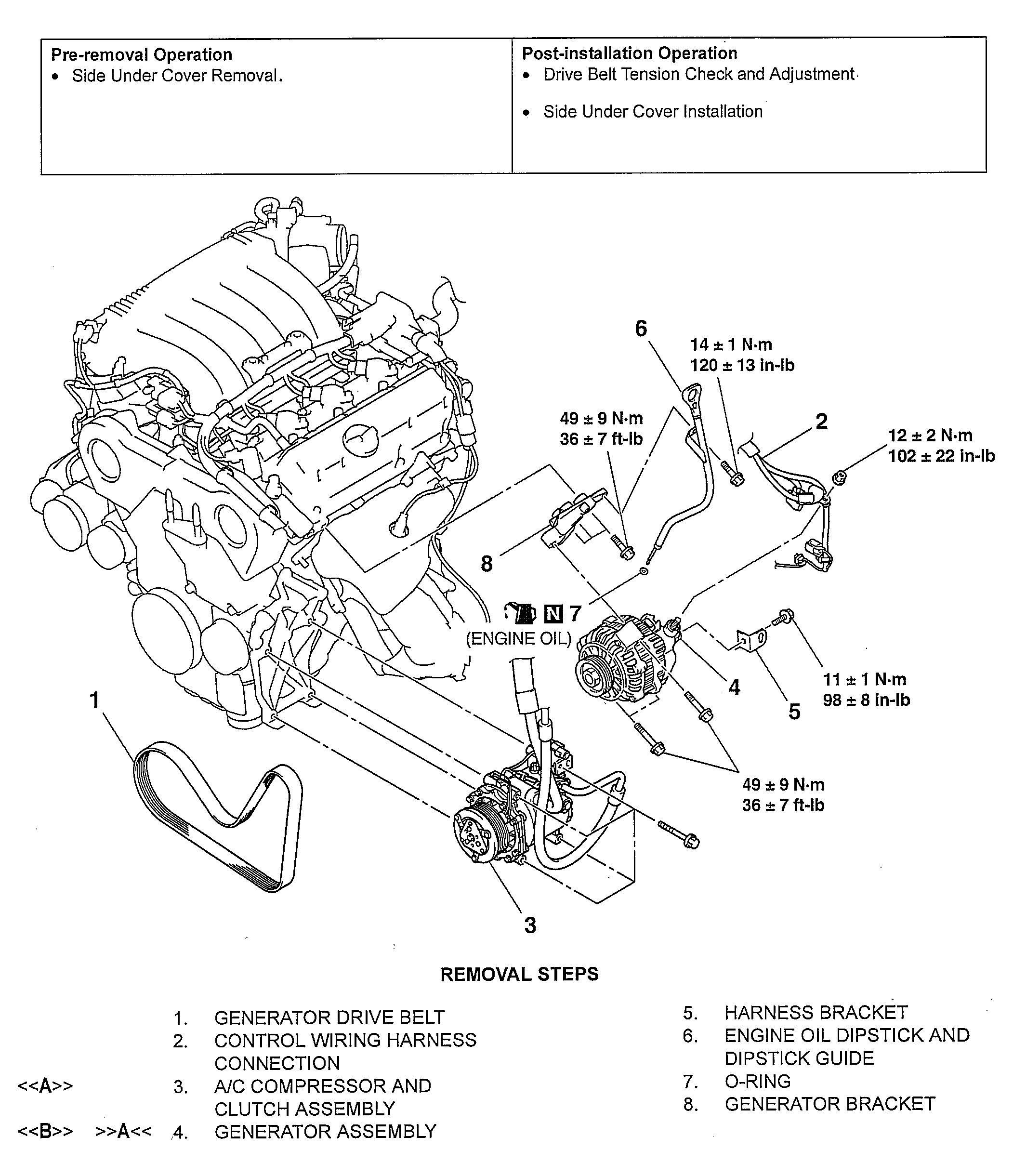

Fig 1: Removing/Installing Generator Assembly - 3.8L Engine - MIVEC With Torque Specifications
G00455285Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
