Disassembly And Assembly: Notes

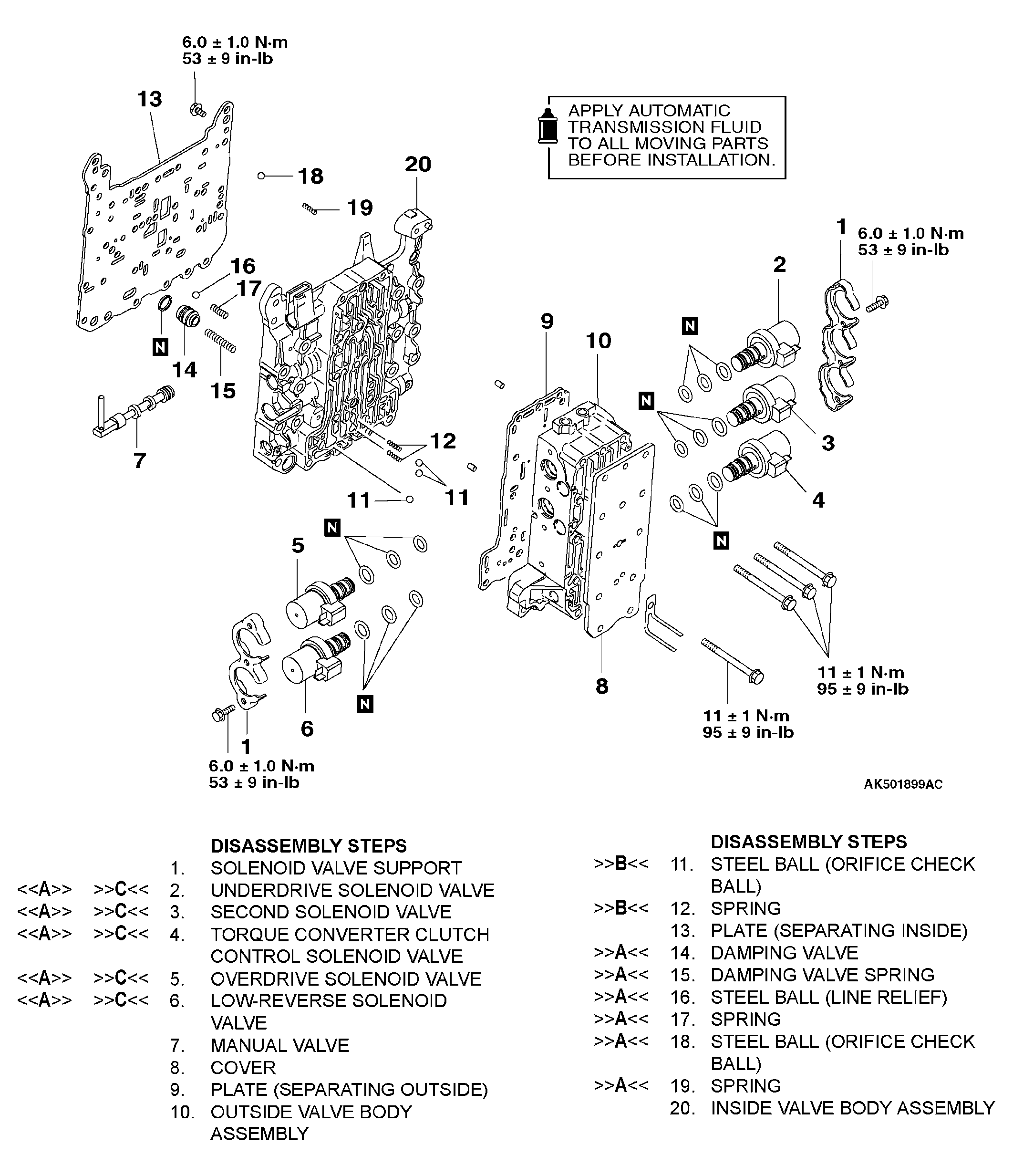

Fig 1: Disassembling/Assembling Valve Body With Torque Specifications (1 Of 3)
G04311647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

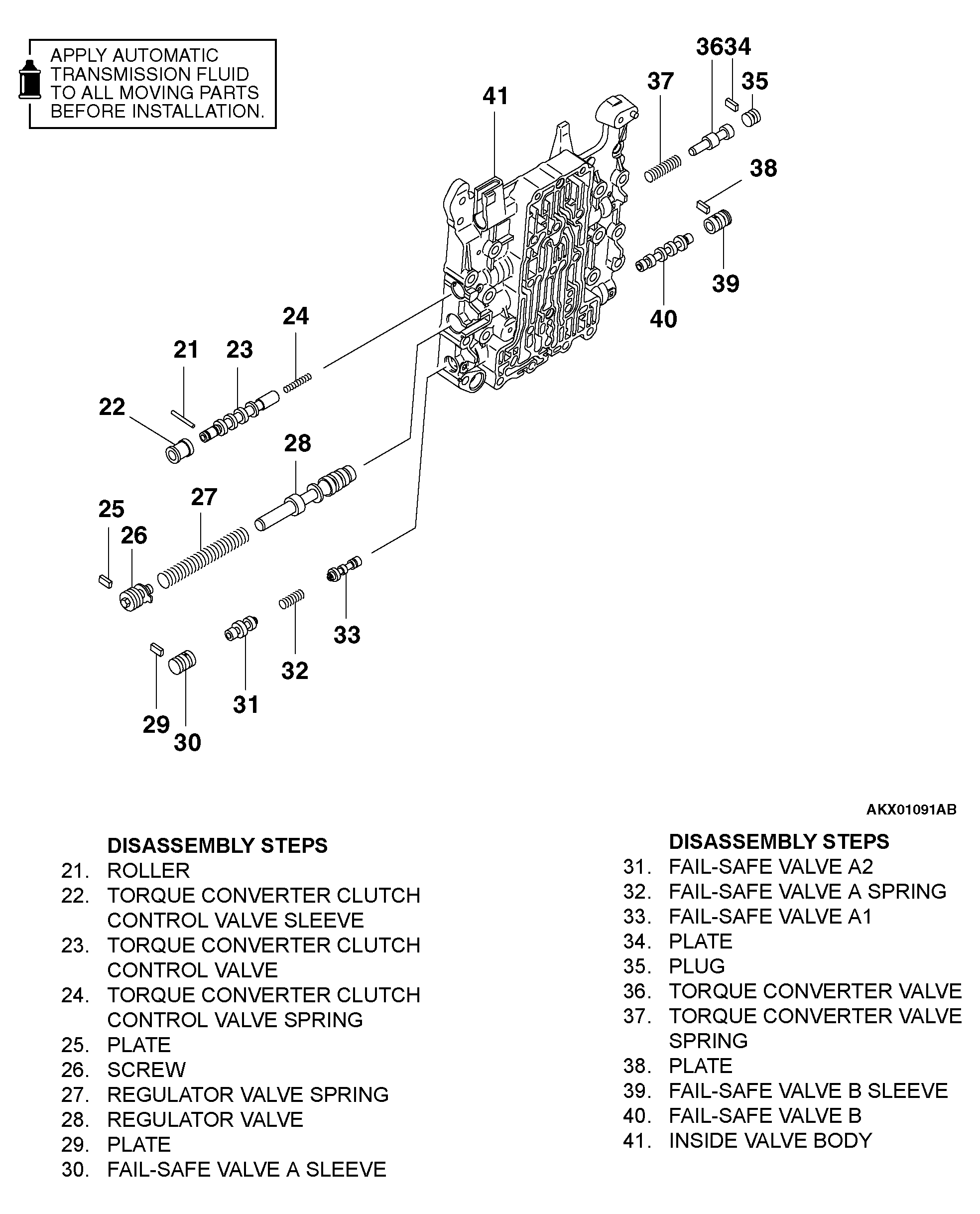

Fig 2: Disassembling/Assembling Valve Body (2 Of 3)
G04311648Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

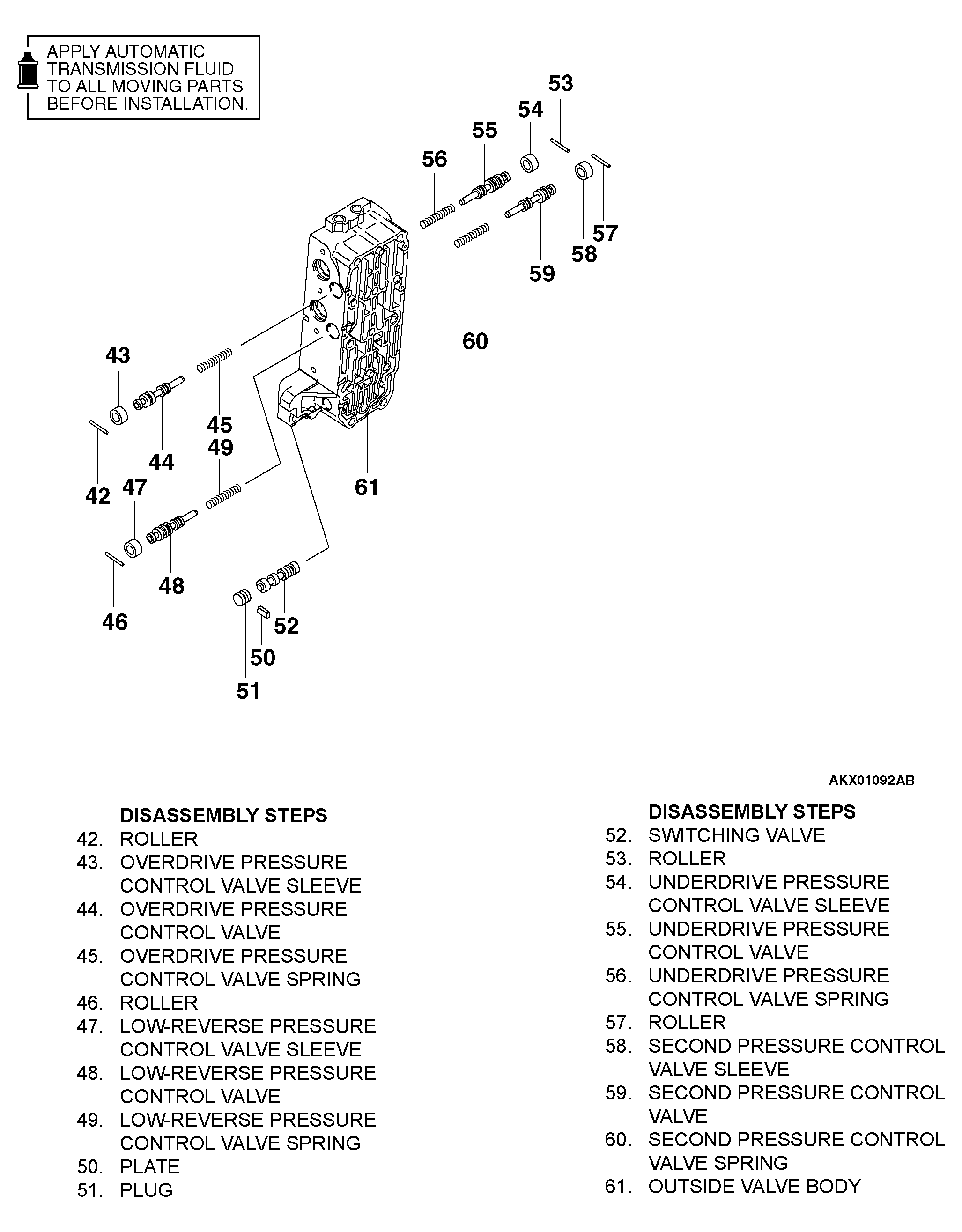

Fig 3: Disassembling/Assembling Valve Body (3 Of 3)
G04311649Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
