MB991958
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826
M.U.T.-III Sub Assembly

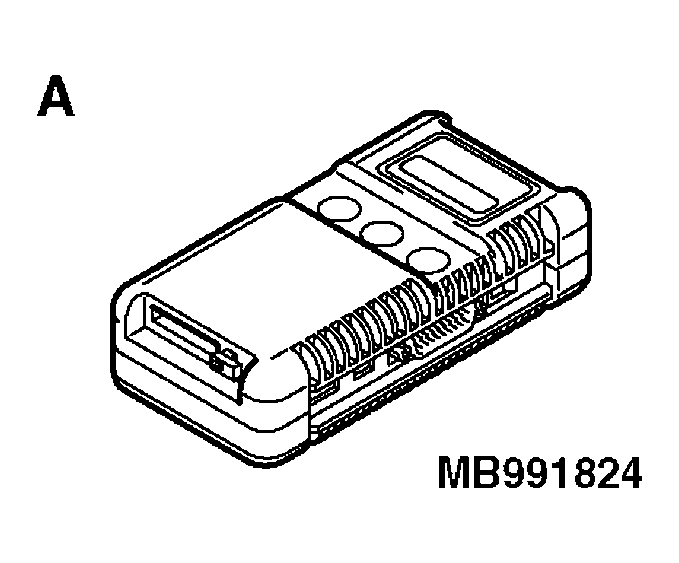

A: Vehicle communication interface (V.C.I.)

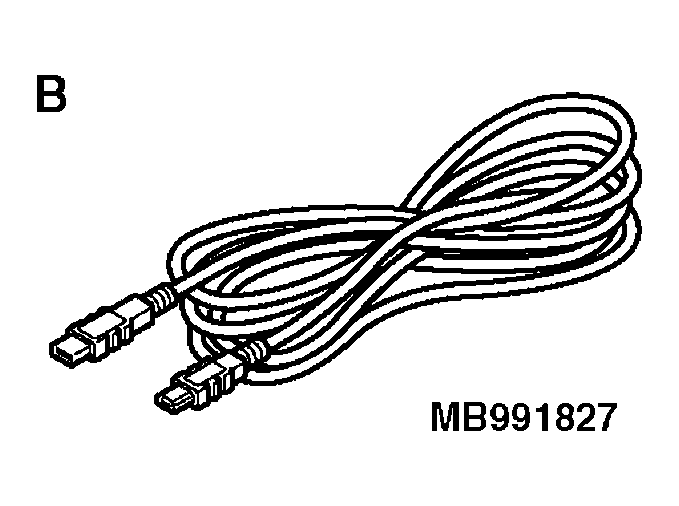

B: M.U.T.-III USB cable

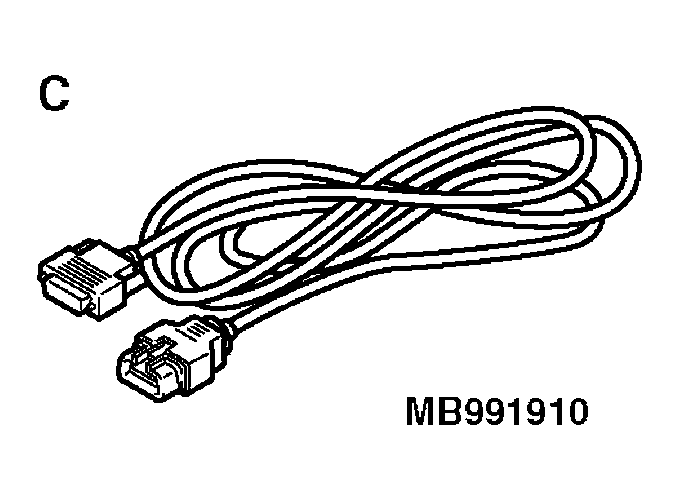

C: M.U.T.-III main harness A (Vehicles with CAN communication system)

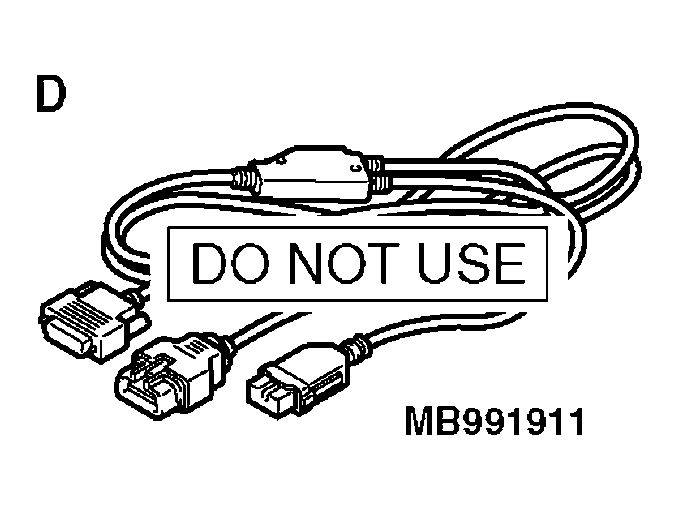

D: M.U.T.-III main harness B (Vehicles without CAN communication system)

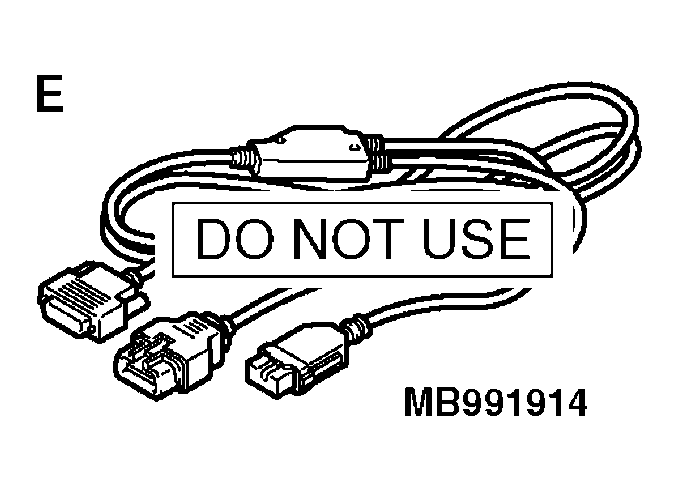

E: M.U.T.-III main harness C (for Daimler Chrysler models only)

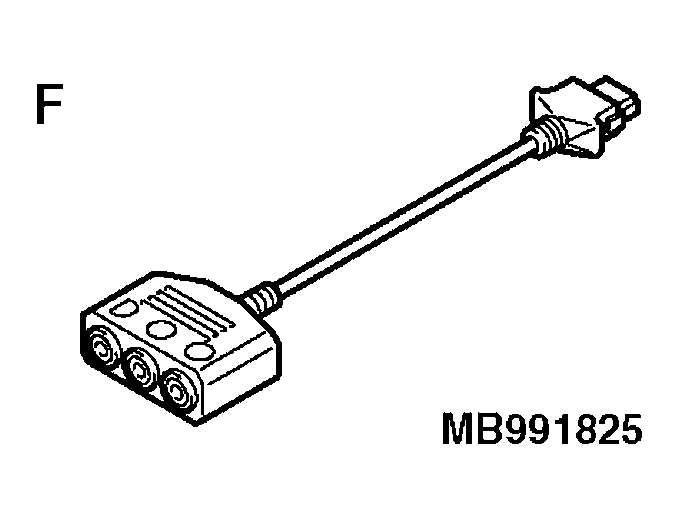

F: M.U.T.-III harness adapter

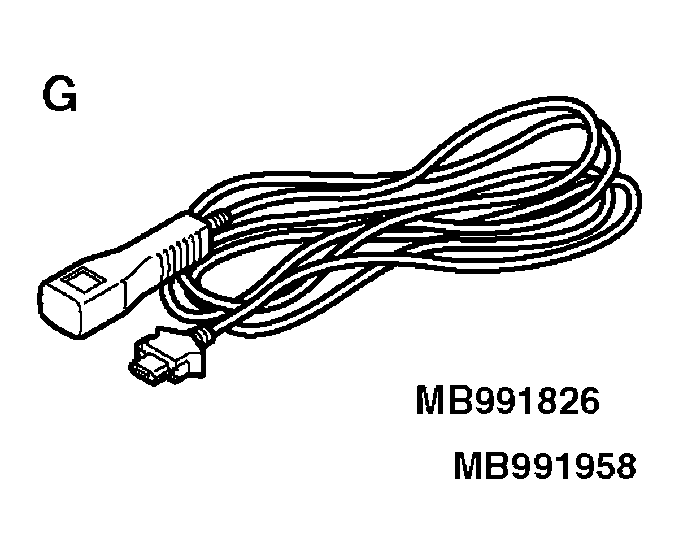

G: M.U.T.-III trigger harness |
MB991824-KIT
NOTE:
G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.
|
Checking diagnostic trouble codes
CAUTION:
For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
|
