INSPECTION PROCEDURE 9: When the ASC OFF Switch is Push On, ASC does not be Cancelled.: Notes

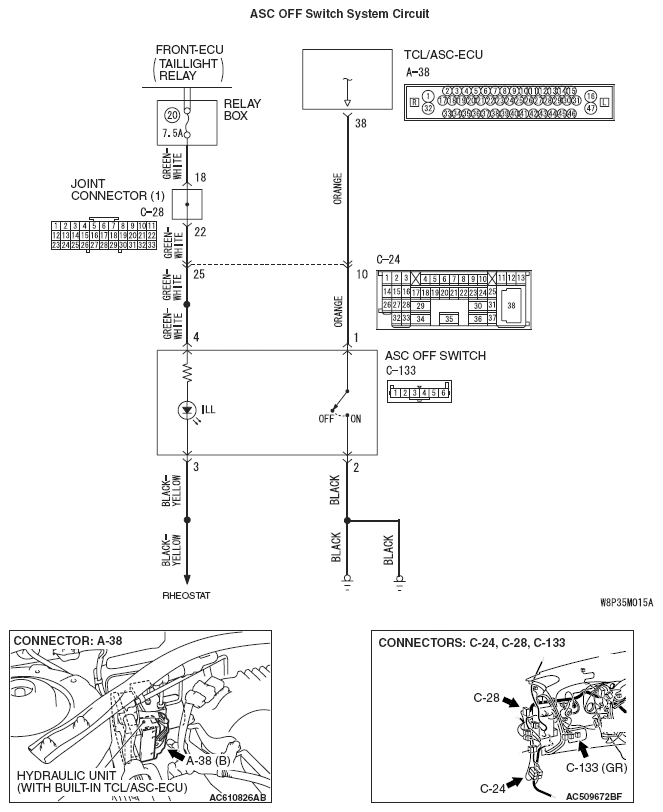

Fig 1: ASC OFF Switch System Circuit Diagram

G05435588

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
