DTC P0516-Battery Temperature Sensor Circuit Low: Notes

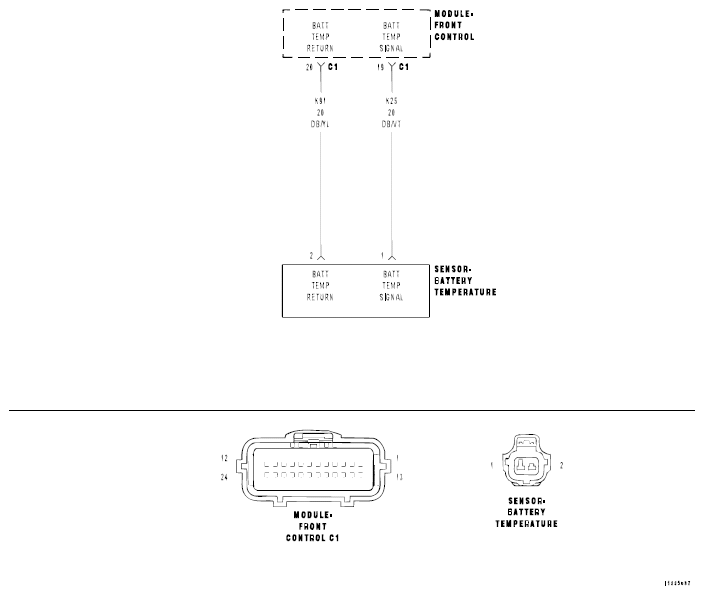

Fig 1: Battery Temperature Sensor Circuit - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:

  Ignition on and battery voltage greater than 10 volts

• Set Condition:

  Battery temperature sensor voltage below 0.039 of a volt. One Trip Fault. Three good trips to turn off the MIL.

Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
