DTC P0501-Vehicle Speed Sensor 1 Performance: Notes

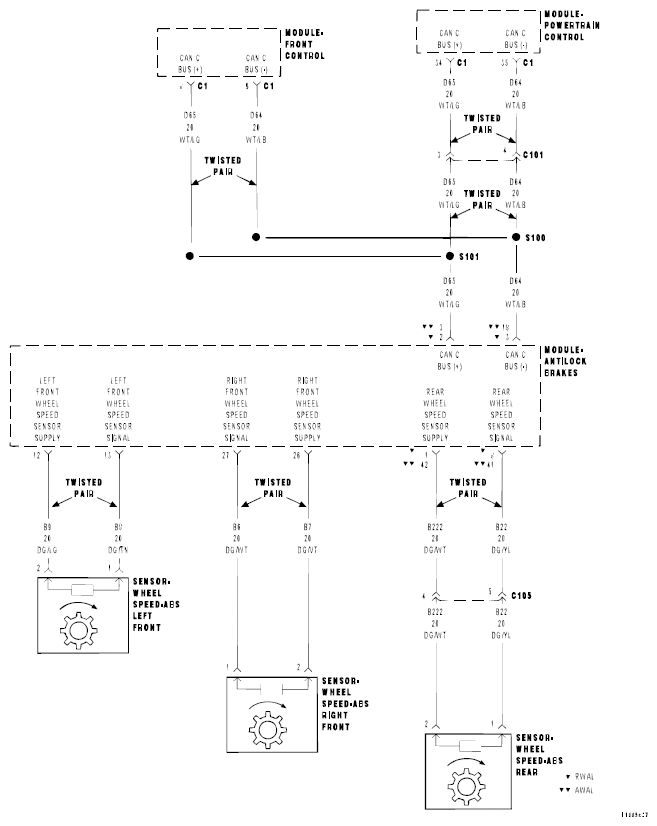

Fig 1: Vehicle Speed Sensor 1 - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

Theory of Operation

The vehicle speed sensor rationality is a continuous test that monitors the vehicle speed sensor for lack of activity. The rationality will not run if a limp-in exists for MAP, Throttle Position, and Engine Coolant Temperature. If vehicle speed sensor is below a minimum threshold for a period of time after the vehicle is operated at a sufficient load, a failure will be indicated.

• When Monitored:

  With the engine running, transmission not in park or neutral, brakes not applied, and engine RPM greater than 1500.

• Set Condition:

  This code will set if no vehicle speed signal is received from the ABS Module up to 120 seconds for 2 consecutive trips. Two Trip Fault. Three good trips to turn off the MIL.

Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
