DTC P0441-EVAP Purge System Performance: Notes

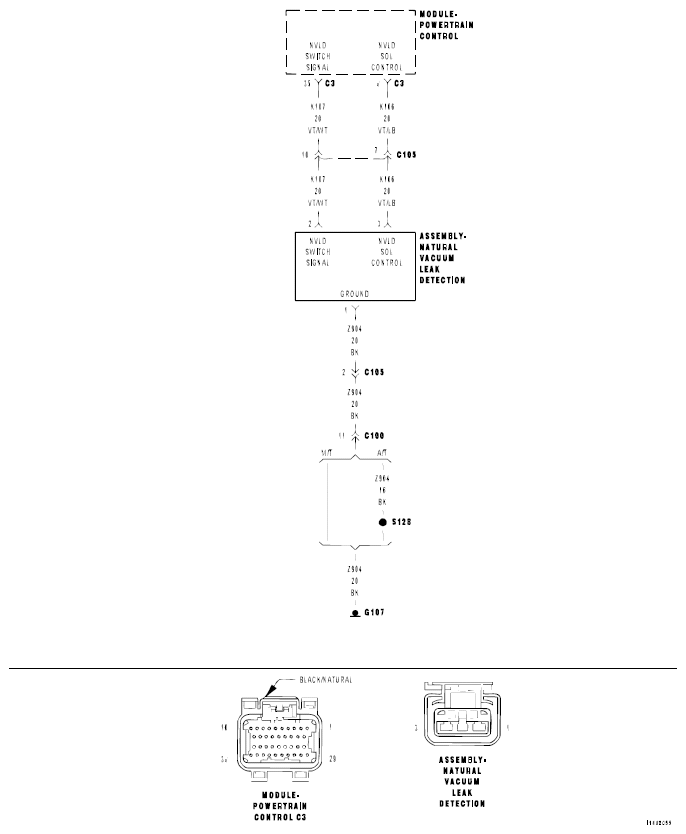

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.
- When Monitored:
Cold start test. Engine Running. Small Leak Test Passed.
- Set Condition:
The PCM activates the EVAP Purge solenoid gradually increases to maximum flow. During flow, the PCM looks for the NVLD switch to close. If the PCM does not see the NVLD switch close at maximum flow an error is detected. Two Trip Fault. Three good trips to turn off the MIL.
| Possible Causes |
|---|
| EVAP PURGE SOLENOID VACUUM SUPPLY |
| EVAP PURGE SOLENOID |
Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
