DTC P0123-Throttle Position Sensor 1 Circuit High: Notes

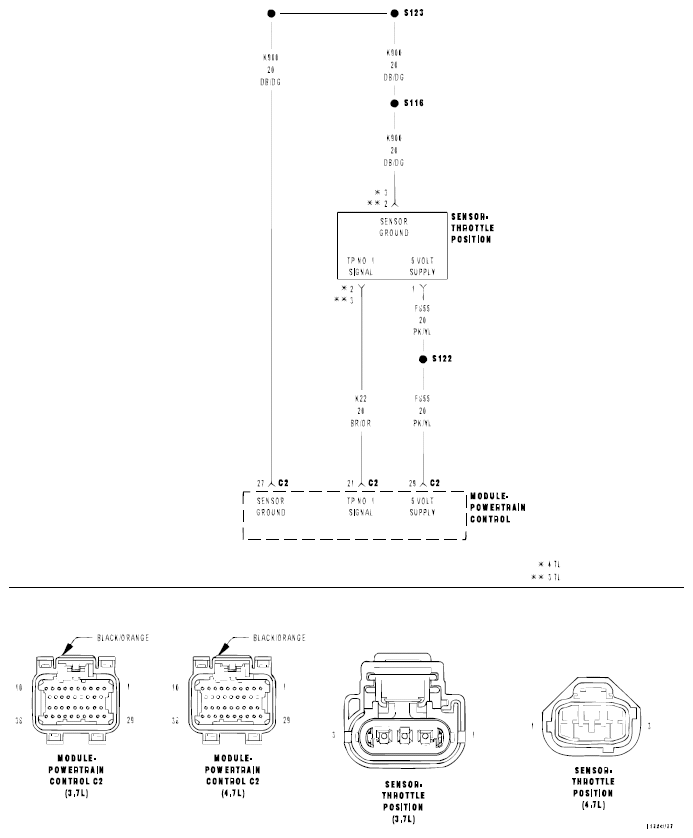

Fig 1: Throttle Position Sensor 1 Circuit - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

When Monitored:
With the ignition on. Battery voltage greater than 10.4 volts.
Set Condition:
Throttle Position Sensor voltage at the PCM is greater than 4.47 volts for 1.3 seconds. One Trip Fault. Three good trips to turn off the MIL.

Possible Causes
(K22) TP SENSOR NO. 1 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE
(K22) TP SENSOR NO. 1 SIGNAL CIRCUIT OPEN
(K22) TP SENSOR NO. 1 SIGNAL CIRCUIT SHORTED TO THE (F855) 5-VOLT SUPPLY CIRCUIT
(K900) SENSOR GROUND CIRCUIT OPEN THROTTLE POSITION SENSOR
PCM
