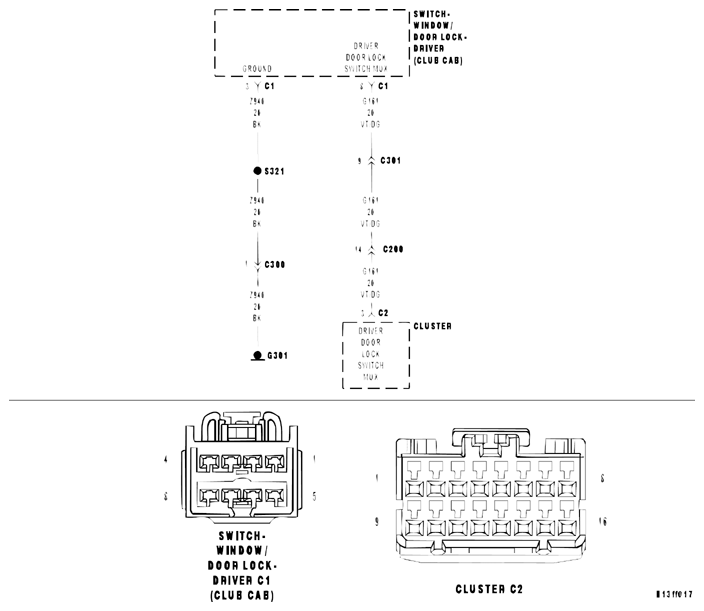

*Driver Door Lock/Unlock Switch Input Circuit Low: Notes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
For a complete wiring diagram
, refer to appropriate SYSTEM WIRING DIAGRAMS article.
| Possible Causes |
| (G161) DRIVER DOOR LOCK SWITCH MUX CIRCUIT SHORT TO GROUND |
| DOOR LOCK SWITCH SHORT TO GROUND INSTRUMENT CLUSTER |
