*Driver Door Lock Switch Inoperative: Notes

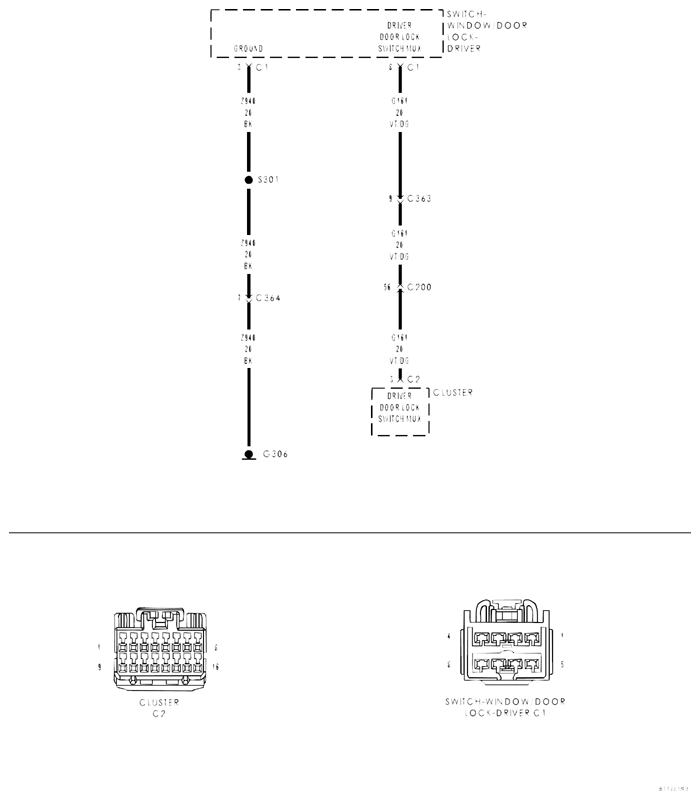

Fig 1: Driver Door Lock Switch MUX Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram , refer to appropriate SYSTEM WIRING DIAGRAMS article.

Possible Causes
(G161) DRIVER DOOR LOCK SWITCH MUX CIRCUIT SHORT TO GROUND
(G161) DRIVER DOOR LOCK SWITCH MUX CIRCUIT OPEN
(Z940) GROUND CIRCUIT OPEN
DOOR LOCK SWITCH
INSTRUMENT CLUSTER

Theory of Operation

This test is only for vehicles that do not have the Memory System.
