Sensor - Output Speed: Installation

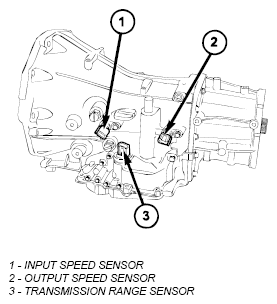

Fig 1: Identifying Input And Output Speed Sensors And Transmission Range Sensor
G04855616Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Install the output speed sensor (2) into the transmission case.
    NOTE: Before installing the speed sensor bolt, it will be necessary to replenish the sealing patch on the bolt using Loctite 242 Lock & Seal Adhesive or equivalent.
  2. Install the bolt to hold the output speed sensor into the transmission case. Tighten the bolt to 9 N.m (80 in.lbs.).
  3. Install the wiring connector onto the output speed sensor
  4. Verify the transmission fluid level. Add fluid as necessary.
  5. Lower vehicle.
