Sensor - Input Speed: Removal

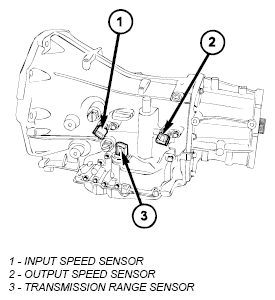

Fig 1: Identifying Input And Output Speed Sensors And Transmission Range Sensor
G04855604Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Raise vehicle.
  2. Place a suitable fluid catch pan under the transmission.
  3. Remove the wiring connector from the input speed sensor.
    NOTE: The speed sensor bolt has a sealing patch applied from the factory. Be sure to reuse the same bolt.
  4. Remove the bolt holding the input speed sensor to the transmission case.
  5. Remove the input speed sensor from the transmission case.
