42RLE - Service Information: Installation

NOTE: Check torque converter hub and hub drive flats for sharp edges burrs, scratches, or nicks. Polish the hub and flats with 320/400 grit paper and crocus cloth if necessary. The hub must be smooth to avoid damaging pump seal at installation.
  1. If a replacement transmission is being installed, transfer any components necessary, such as the manual shift lever and shift cable bracket, from the original transmission onto the replacement transmission.
  2. Lubricate oil pump seal lip with transmission fluid.

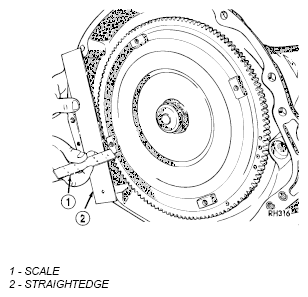

    Fig 1: Checking Converter Seating With Steel Scale And Straightedge
    G04855456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Align converter and oil pump.
  4. Carefully insert converter in oil pump. Then rotate converter back and forth until fully seated in pump gears.
  5. Check converter seating with steel scale (1) and straightedge (2). Surface of converter lugs should be at least 13 mm (1/2 in.) to rear of straightedge when converter is fully seated.
  6. Temporarily secure converter with C-clamp.
  7. Position transmission on jack and secure it with chains.
  8. Check condition of converter driveplate. Replace the plate if cracked, distorted or damaged. Also be sure transmission dowel pins are seated in engine block and protrude far enough to hold transmission in alignment.
  9. Apply a light coating of Mitsubishi High Temp Grease to the torque converter hub pocket in the rear pocket of the engine's crankshaft.
  10. Raise transmission and align the torque converter with the drive plate and transmission converter housing with the engine block.
  11. Move transmission forward. Then raise, lower or tilt transmission to align the converter housing with engine block dowels.
  12. Carefully work transmission forward and over engine block dowels until converter hub is seated in crankshaft. Verify that no wires, or the transmission vent hose, have become trapped between the engine block and the transmission.
  13. Install two bolts to attach the transmission to the engine.
  14. Install remaining torque converter housing to engine bolts. Tighten to 68 N.m (50 ft. lbs.).
  15. Install transfer case, if equipped. Tighten transfer case nuts to 35 N.m (26 ft. lbs.).
  16. Install rear transmission crossmember. Tighten crossmember to frame bolts to 68 N.m (50 ft. lbs.).
  17. Install rear support to transmission. Tighten bolts to 47 N.m (35 ft. lbs.).
  18. Lower transmission onto crossmember and install bolts attaching transmission mount to crossmember. Tighten clevis bracket to crossmember bolts to 47 N.m (35 ft. lbs.). Tighten the clevis bracket to rear support bolt to 68 N.m (50 ft. lbs.).

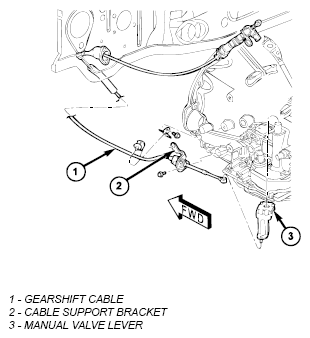

    Fig 2: Identifying Gearshift Cable, Support Bracket And Transmission Manual Lever
    G04855457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  19. Connect gearshift cable (1) to support bracket (2) and transmission manual lever (3).

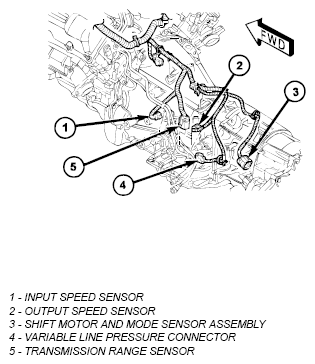

    Fig 3: Identifying Sensor Locations & Line Pressure Connector
    G04855458Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  20. Connect the input (1) and output (2) speed sensor and the transmission range sensor (5).
  21. Connect the variable line pressure connector (4), if equipped.
    Fig 4: Identifying Solenoid/Pressure Switch Assembly
    G04855459Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  22. Connect wires to the solenoid/pressure switch assembly (1).

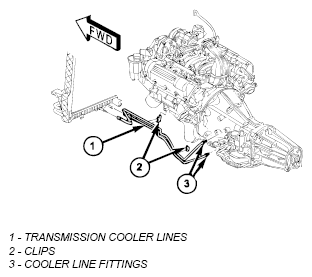

    Fig 5: Identifying Cooler Lines To Transmission
    G04855460Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: It is essential that correct length bolts be used to attach the converter to the driveplate. Bolts that are too long will damage the clutch surface inside the converter.
  23. Install torque converter-to-driveplate bolts. Tighten bolts to 88 N.m (65 in. lbs.).
  24. Install starter motor and cooler line bracket.
  25. Connect cooler lines (1) to transmission.
  26. Install transmission fill tube.
    Fig 6: Identifying Exhaust Components
    G04855461Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  27. Install exhaust components (1).
    Fig 7: Identifying Skid Plates
    G04855462Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  28. Align and connect propeller shaft (s).
  29. Adjust gearshift cable if necessary.
  30. Install any skid plates removed previously.
  31. Lower vehicle.
  32. Fill transmission with Mitsubishi ATF +4, Automatic Transmission Fluid.
