Removal And Installation: Notes

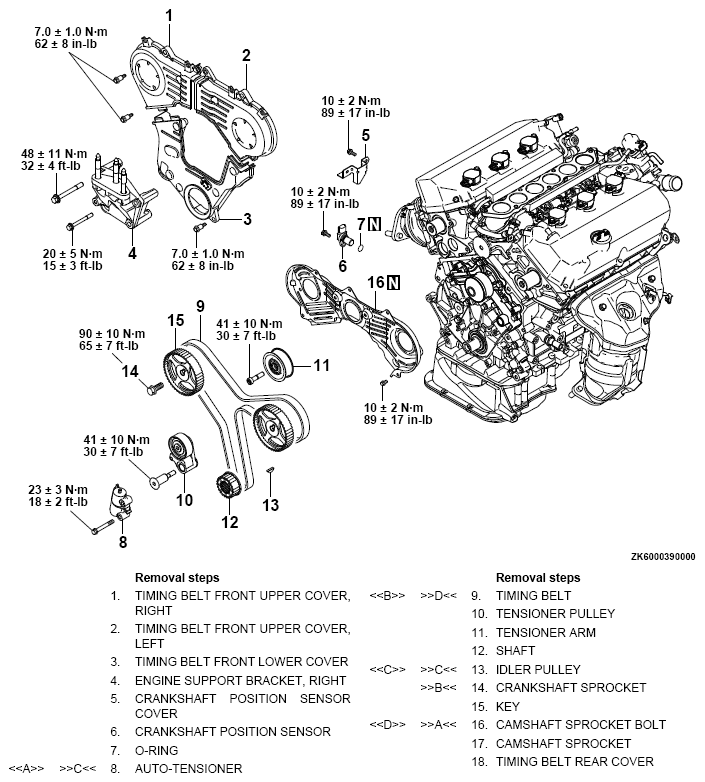

Fig 1: Timing Belt Remove / Install Replacement Components With Torque Specifications
G04869705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
