Removal And Installation

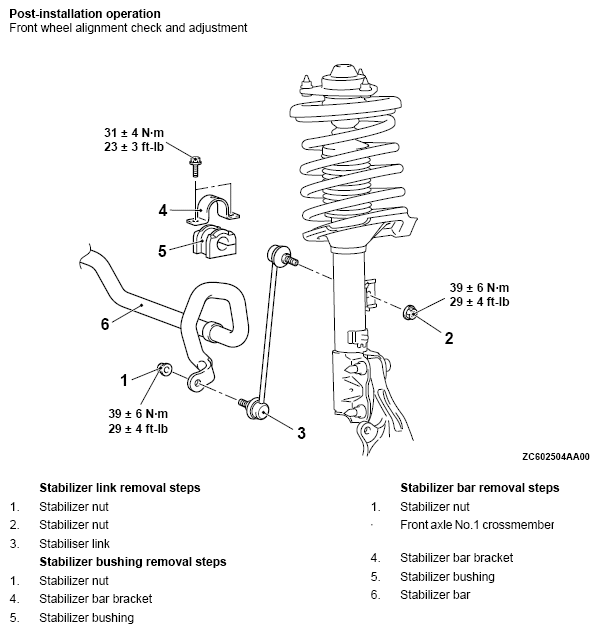

Fig 1: Stabilizer Bar Replacement Components With Torque Specifications

G04871790

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
