Lower Arm Bushing Replacement

Replace the back side bushing according to the following procedure.

Fig 1: Identifying Lower Arm Bushing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Use the following special tools to remove the bushing:
   • MB992119 (Arm bushing remover and installer)
   • MB990979 (Ring)
   • MB990890 (Rear suspension bushing base)

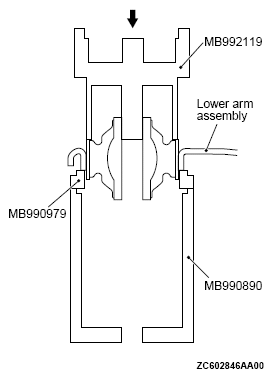

     Fig 2: Identifying Special Tools

     Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Use the following special tools to press-fit the bushing.
   • MB992119 (Arm bushing remover and installer)
   • MB990979 (Ring)
   • MB990890 (Rear suspension bushing base)
3. Press-fit the bushing so that the bushing protrusion is in the direction shown in the figure.
4. Press-fit the bushing until the special tool contacts with the lower arm assembly.

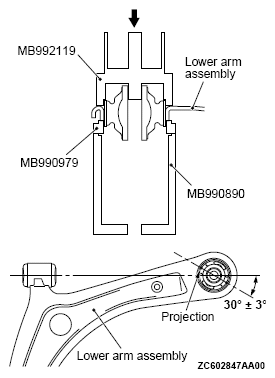

   Fig 3: Identifying Special Tools

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
