Removal And Installation

CAUTION:
  • As for vehicles with headlamp auto levelling system, disconnect the height sensor from the lower arm before operation to prevent damages to the height sensor. (Refer to HEIGHT SENSOR .)
  • The part indicated by* is the bolt/nut with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.

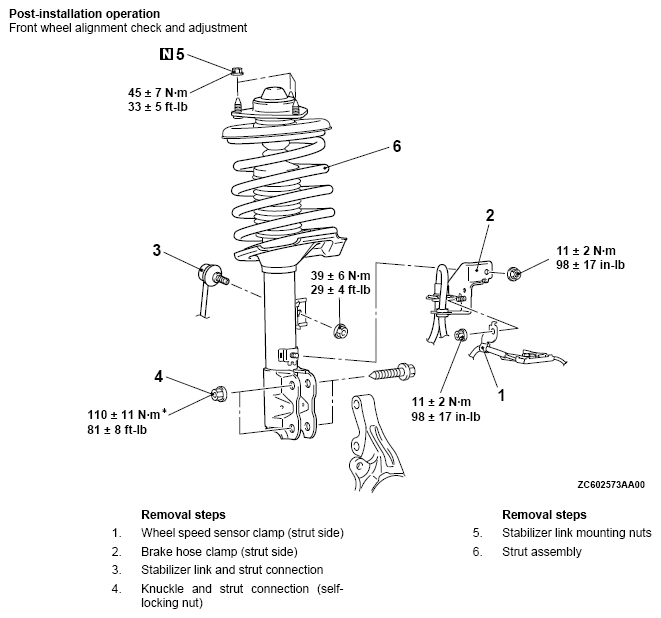

    Fig 1: Strut Assembly Replacement Components With Torque Specifications
    G04871774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
