Code No. 31 Leveling unit abnormality: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

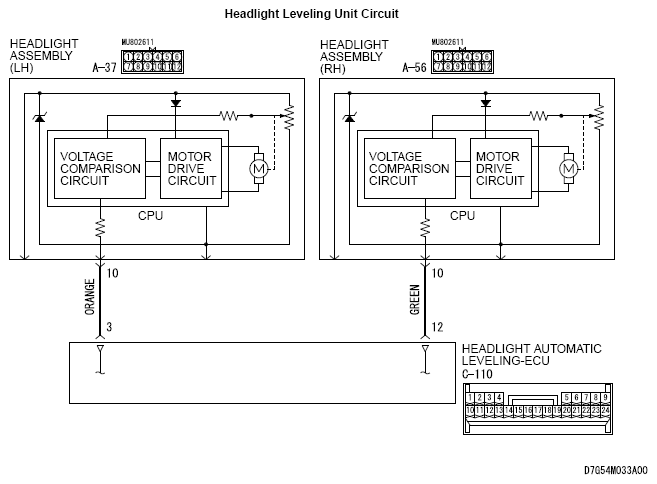

Fig 1: Headlight Leveling Unit Circuit Diagram
G04873593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Connector C-110
G04873575Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Connector A-56
G04873595Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Identifying Connector A-37
G04873596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
