Removal And Installation: Notes

CAUTION: To remove the driver airbag module, refer to SERVICE PRECAUTIONS and AIR BAG MODULE(S) AND CLOCK SPRING .

Pre-removal Operation

Removal of lower panel and steering column cover (Refer to INSTRUMENT PANEL ASSEMBLY .)
Removal of clock spring/column switch assembly (Refer to STEERING SHAFT and AIR BAG MODULE(S) AND CLOCK SPRING .)

Post-installation Operation

Installation of clock spring/column switch assembly (Refer to STEERING SHAFT and AIR BAG MODULE(S) AND CLOCK SPRING .)
Installation of lower panel and steering column cover (Refer to INSTRUMENT PANEL ASSEMBLY .)

< Vehicles with KOS >

Fig 1: Removal / Installation Of Ignition Switch (Vehicle With KOS) With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< Vehicles with WCM >

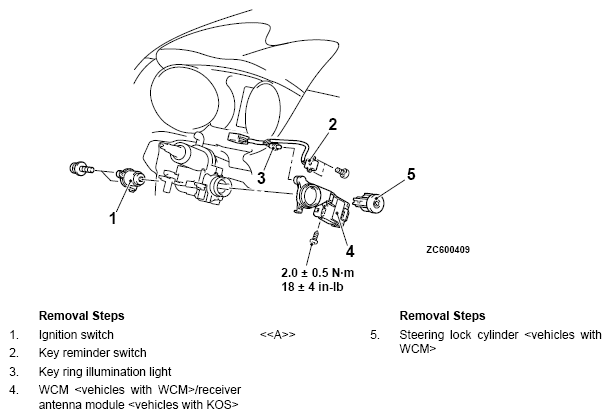

Fig 2: Removal / Installation Of Ignition Switch (Vehicle With WCM) With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
