Special Tools

SPECIAL TOOLS REFERENCE CHART

TOOL Tool number and name Supersession Application
G04869673
 MB990767
Front hub and flange yoke holder		 MB990767-01 Fixing of the hub
G04871470
 MB991618
Hub bolt remover		 General service tool Removal of the hub bolt
G04871471
 MB991897 or MB992011
Ball joint remover		 MB991113-01, MB990635-01
or General service tool		 Knuckle and tie rod end ball joint disconnection
NOTE: Steering linkage puller (MB990635 or MB991113)is also used to disconnect knuckle and tie rod end ball joint.
G04871472
 MB990241
Axle shaft puller
A: MB990242
Puller shaft
B: MB990244
Puller bar		 MB990241-01 or General service tool Removal of the driveshaft
G04871473
 MB991354
Puller body		 General service tool
G04871474
 MB991056 or MB991355
Knuckle arm bridge		 MB991056-01
  • Removal of the hub
  • Removal of the wheel bearing
G04871475
 MB991172 Inner shaft installer base - Press-fitting of the inner shaft
G04871476
  1. MB991017
  2. MB990998
  3. MB991000

A, B: Front hub remover and installer
C: Spacer		 MB990998-01
  • Removal of the hub
  • Provisional holding of the wheel bearing
  • Measurement of hub starting torque
  • Measurement of wheel bearing end play
NOTE: MB991000, which belongs to MB990998, should be used as a spacer.
G04871477
 MB990326
Preload socket		 General service tool Measurement of hub starting torque
G04871192
 MB990810
Side bearing puller		 General service tool
  • Removal of the center bearing bracket
  • Removal of the wheel bearing inner race (outside)
G04871479
 MB990925
Bearing and oil seal installer set		 MB990925-01 or General service tool
  • Removal of the wheel bearing
  • Removal and installation of the center bearing
  • Press-fitting of the dust seal outer, inner
G04871480
 MB991388
Bush remover base		 - Press-fitting of the dust cover
G04871481
 MB991576
Base		 -
G04871482
 MB990890
Rear suspension bushing base		 MB990890-01
  • Installation of the wheel bearing
  • Press-fitting of the dust seal outer, inner
G04871483
 MB991248
Inner shaft remover		 MD998348-01 Removal of the inner shaft
G04871484
 MB990883
Rear suspension bushing arbor		 MB990883-01 Installation of the wheel bearing
G04871485
 MB991561
Boot band crimping tool		 MB991561 BJ boot (resin boot) band installation
G04871486
 MD998369
Bearing installer		 - Press-fitting of the seal plate

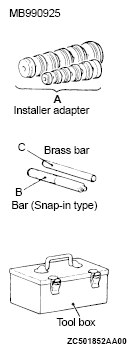

BEARING AND OIL SEAL INSTALLER SET

TOOL Type Tool number O D mm (in)
G04871487
 A MB990926 39.0 (1.54)
MB990927 45.0 (1.77)
MB990928 49.5 (1.95)
MB990929 51.0 (2.00)
MB990930 54.0 (2.13)
MB990931 57.0 (2.24)
MB990932 61.0 (2.40)
MB990933 63.5 (2.50)
MB990934 67.5 (2.66)
MB990935 71.5 (2.81)
MB990936 75.5 (2.97)
MB990937 79.0 (3.11)
B MB990938 -
C MB990939 -
