LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2007
>>
Outlander ES
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Power Steering Oil Pump Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

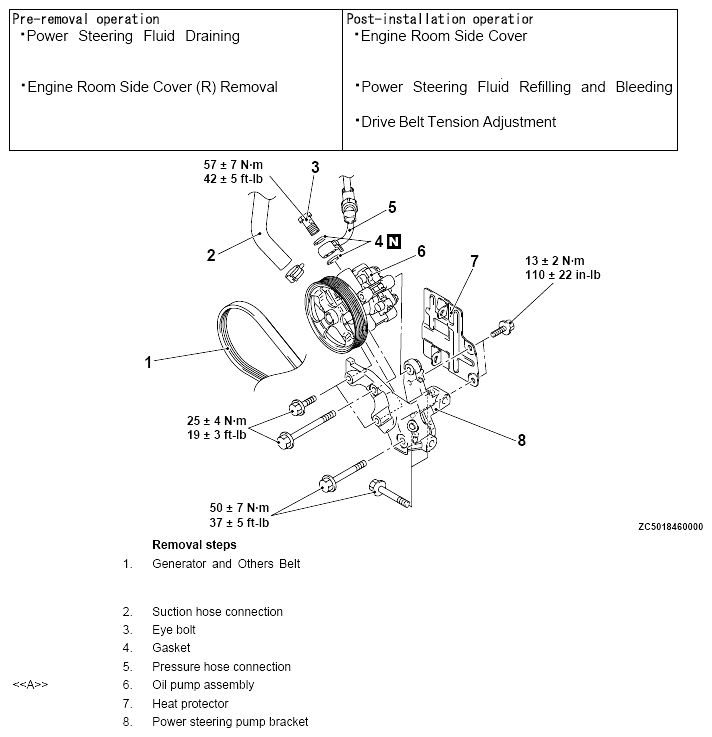

Fig 1: Exploded View Of Power Steering Oil Pump Assembly With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
