DTC B2101: IG SW Start Pos. Circuit Low; DTC B2102: IG SW Start Pos. Circuit High: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If DTC B2101 or B2102 is set, be sure to diagnose the CAN bus line.
  • Before replacing the ECU, ensure that the communication circuit is normal.

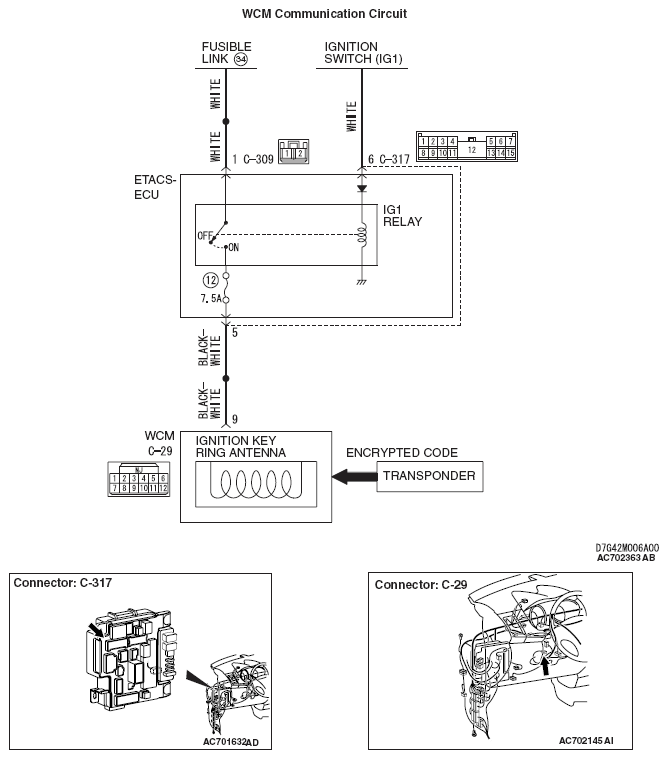

Fig 1: WCM Communication Circuit Diagram
G05433246Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
