Transmission Oil Level Check

  1. Remove the filler plug.
  2. Check that the oil level is up to the lower edge of the filler plug hole.
  3. Check that the oil is not noticeably dirty.
  4. Tighten the filler plug to the specified torque.

    Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)

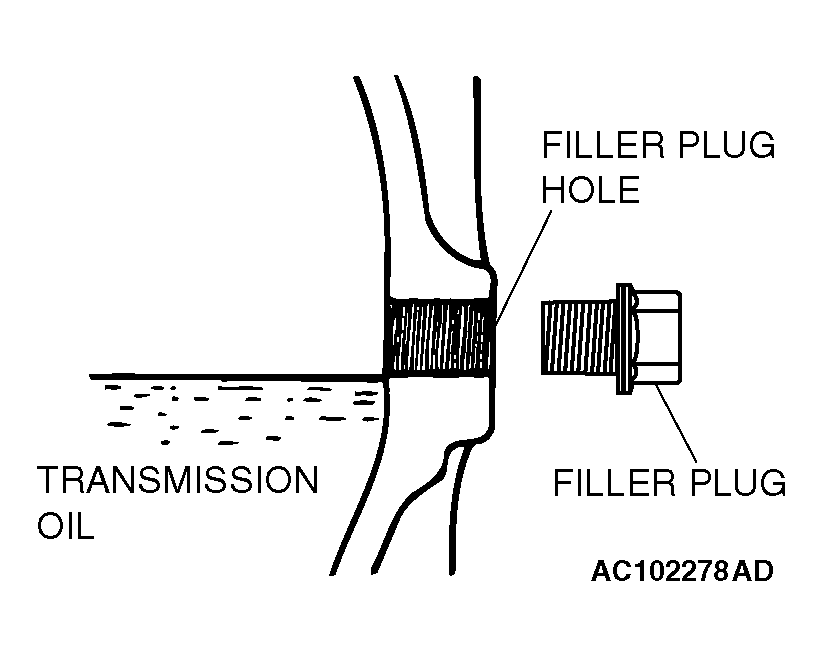

    Fig 1: Identifying Oil Level Up to Lower Edge Of Filler Plug Hole
    G04275739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
