Special Tools
SPECIAL TOOLS CHART
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

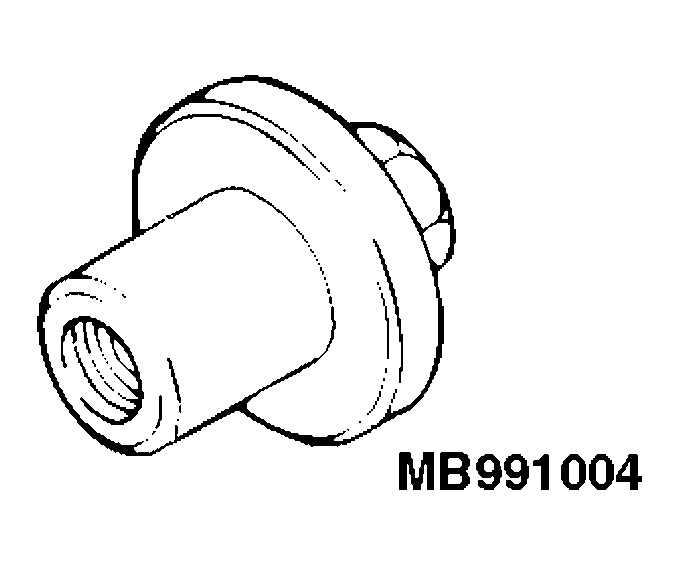

| MB991004 Wheel alignment gauge attachment | MB991004-01 or General service tool | Wheel alignment measurement | |

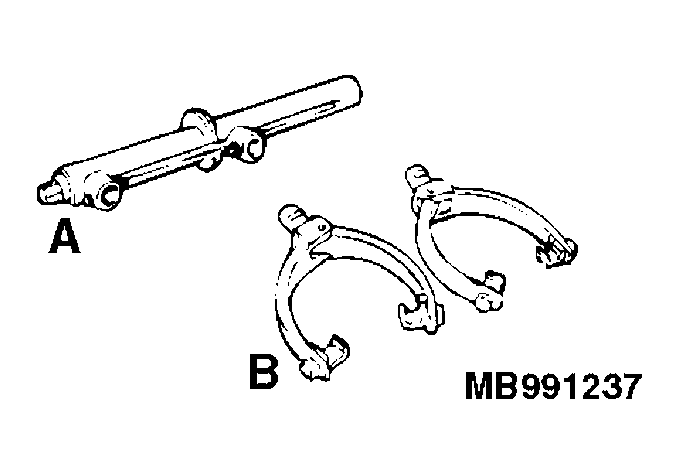

| A: MB991237 Spring compressor body B: MB991238 Arm set | MIT221369 or general service tool | Front coil spring compression | |

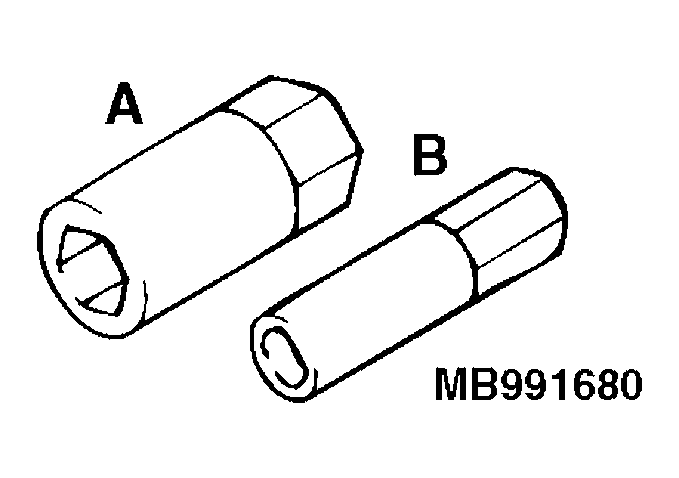

| MB991680 Wrench set A: MB991681 Wrench B: MB991682 Socket | - | Strut assembly disassembly and reassembly | |

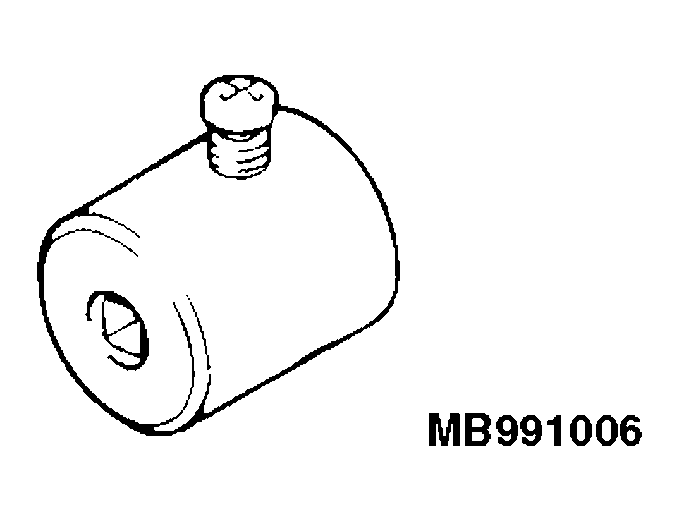

| MB991006 Preload socket | MB990228-01 | Lower arm ball joint breakaway torque check | |

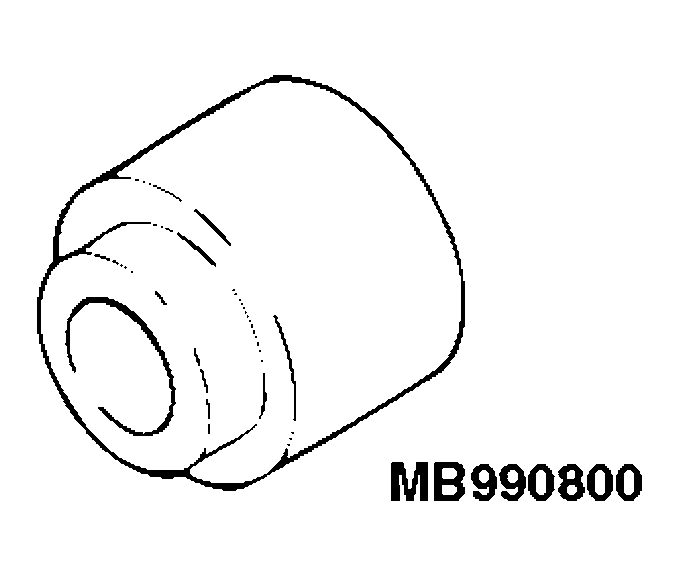

| MB990800 Ball joint dust cover installer | MB990800-01or General service tool | Lower arm ball joint dust cover installation | |

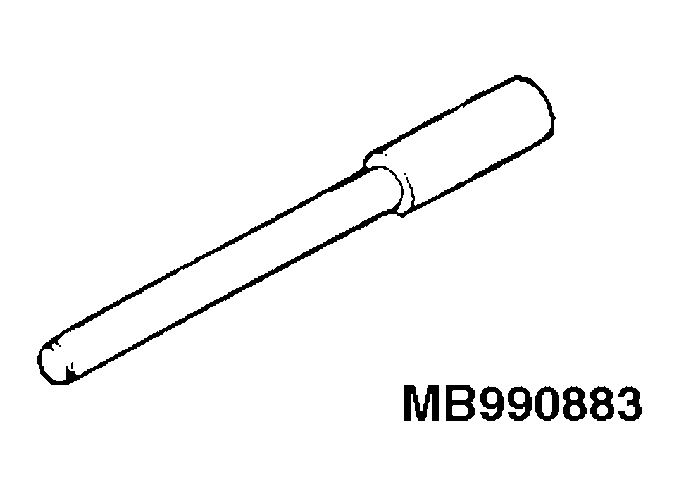

| MB990883 Rear suspension bushing arbor | MB990883-01 or general service tool | Lower arm bushing removal and press-fitting | |

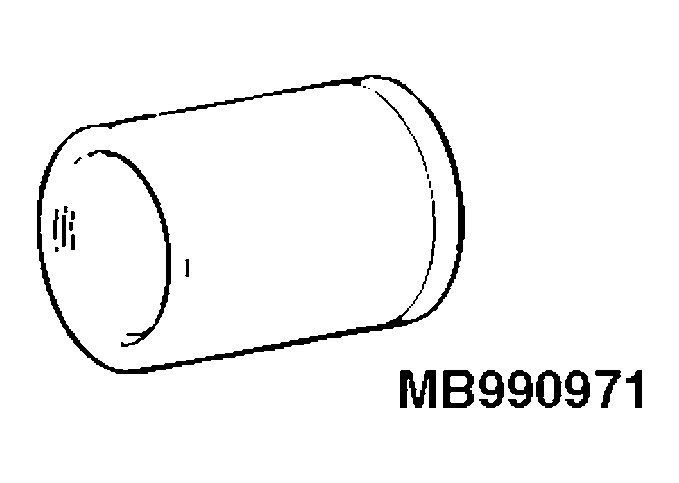

| MB990971 Rear wheel bearing & installer joint | - | ||

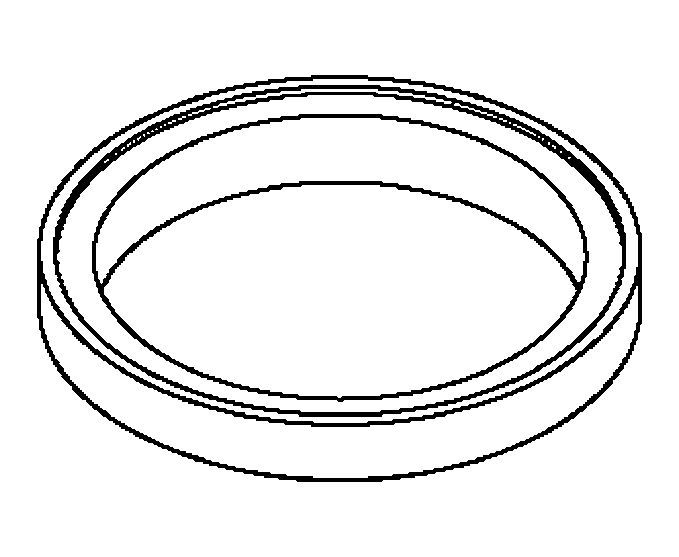

| MB990887 Ring | - | ||

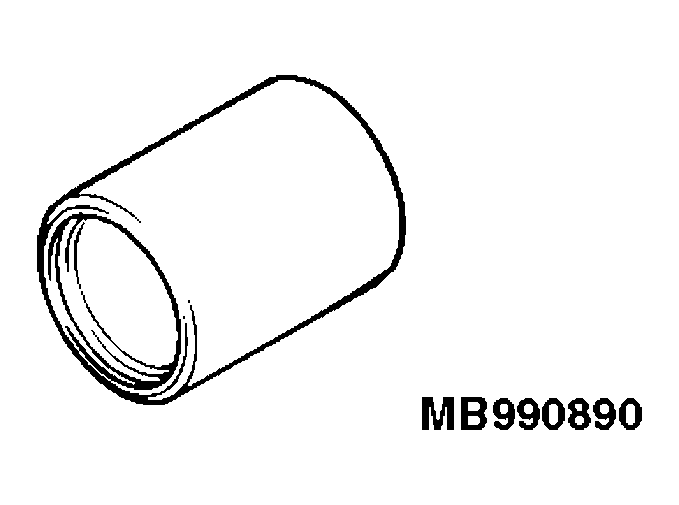

| MB990890 Rear suspension bushing base | MB990890-01 or general service tool | ||

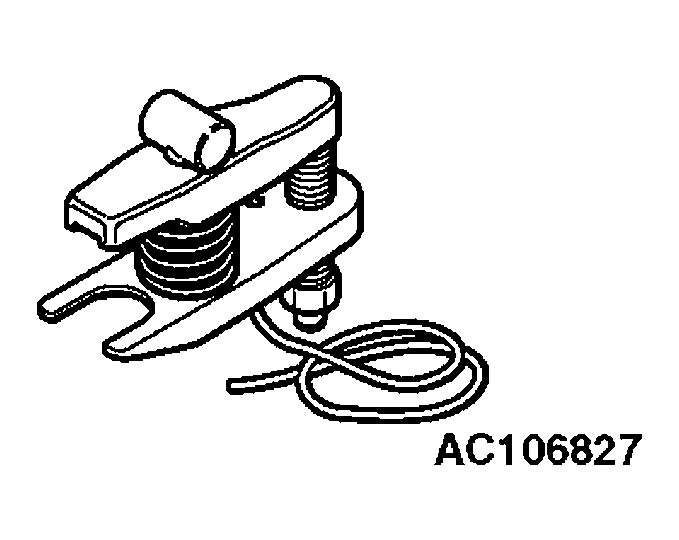

| MB991897 Ball joint remover | MB991113-01 or general service tool | Tie rod end Knuckle disconnection
NOTE:
Steering linkage puller (MB990635 or MB991113)is also used to disconnect knuckle and tie rod end ball joint.
|
