Power Steering - Lancer: General Description

The steering wheel has four spokes. All vehicles are equipped with SRS (Supplemental Restraint System).

The steering column has a shock absorber mechanism and a tilt mechanism.

The power steering is an integral rack and pinion type that combines the steering gear and linkage into one light-weight and compact assembly.

The steering system uses a vane oil pump with a fluid flow control system, so that steering effort varies with engine speed.

< 2.0L ENGINE >

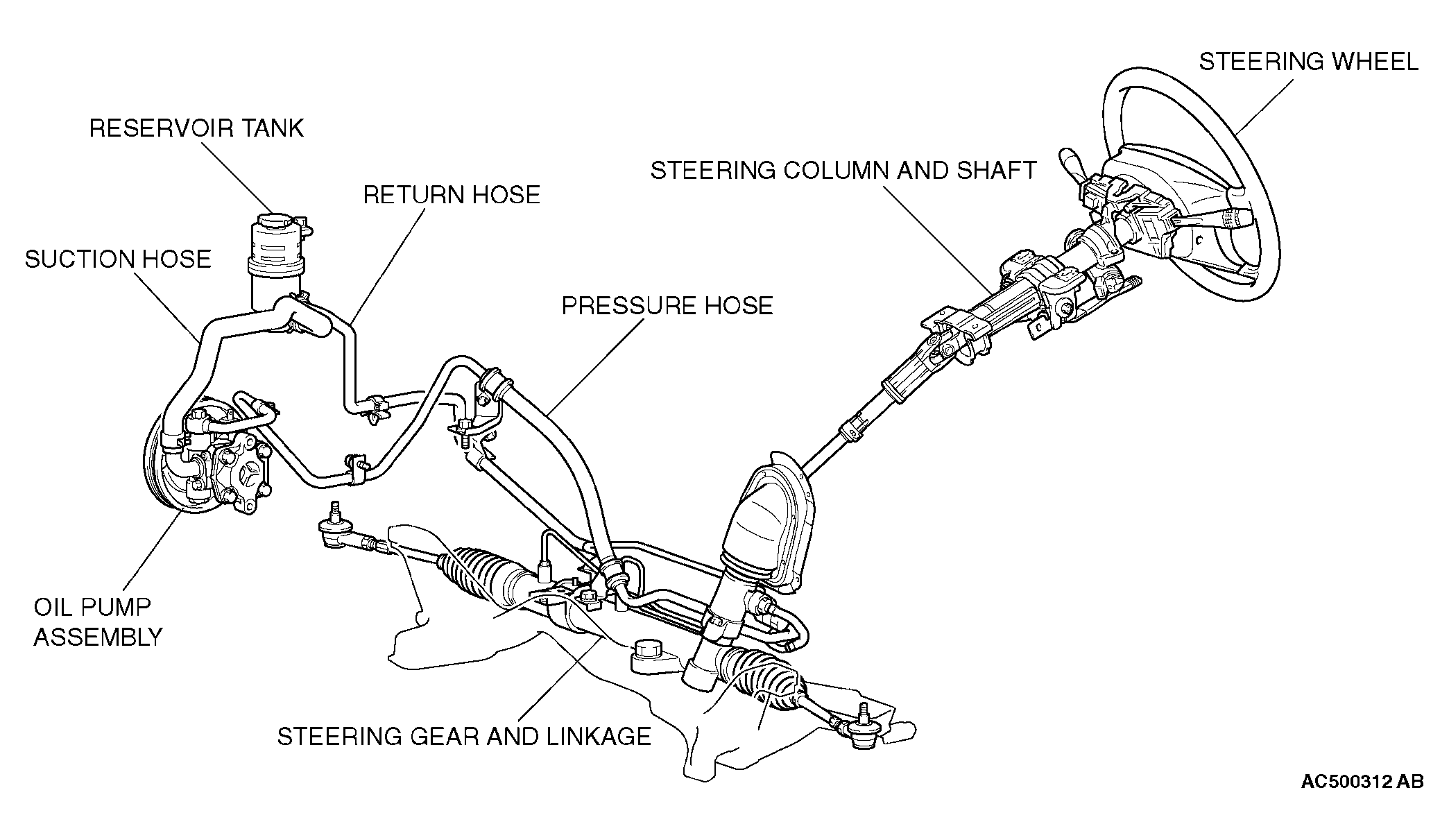

Fig 1: Power Steering Diagram (2.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< 2.4L ENGINE >

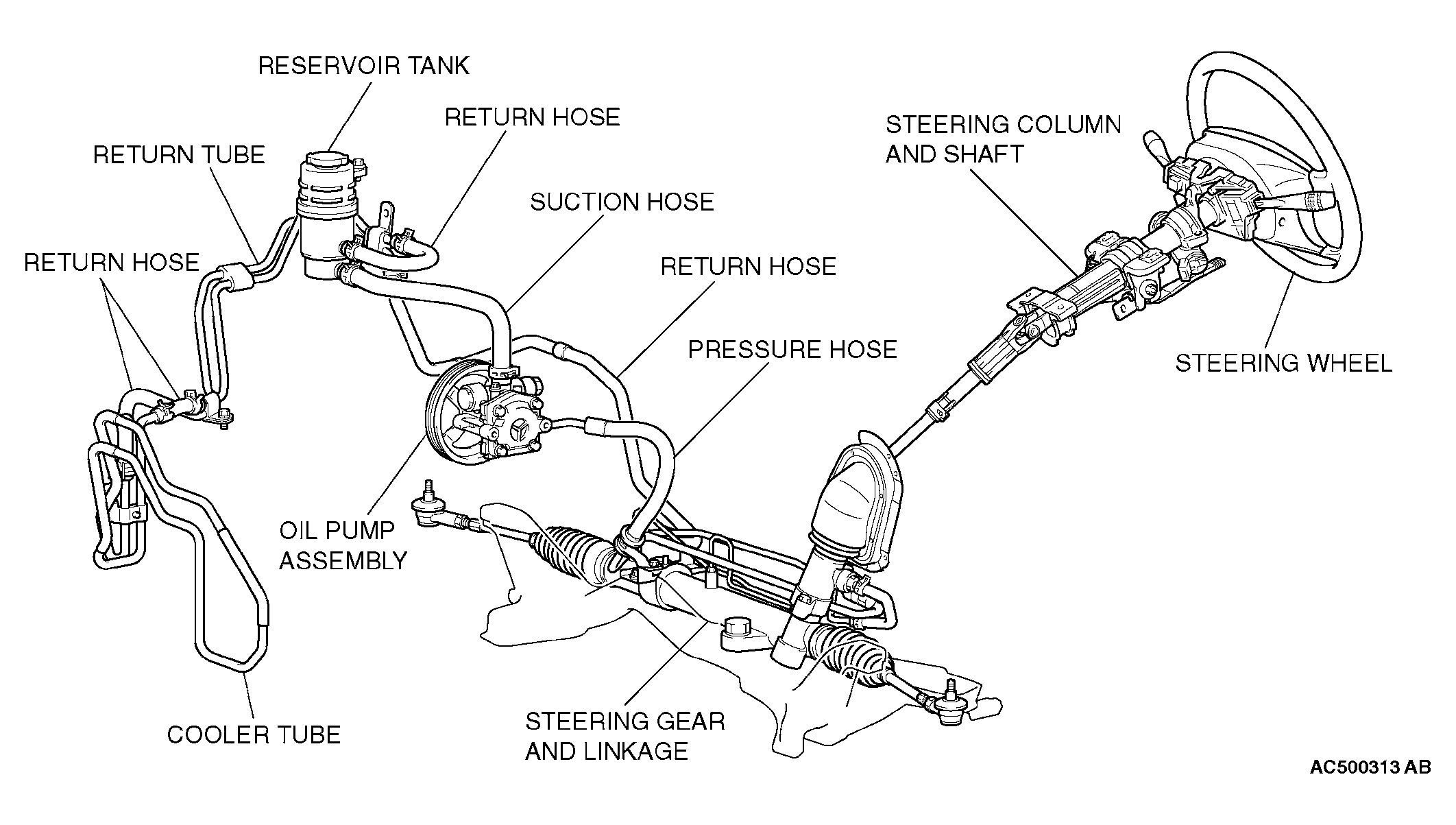

Fig 2: Power Steering Diagram (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
