< 2.0L Engine >

Measure the resistance of the all spark plug leads.

  1. Check the cap and coating for cracks.
  2. Measure the resistance.

    Limit: 19 kΩ

  3. If resistance is greater than 19 kΩ, replace the cable.

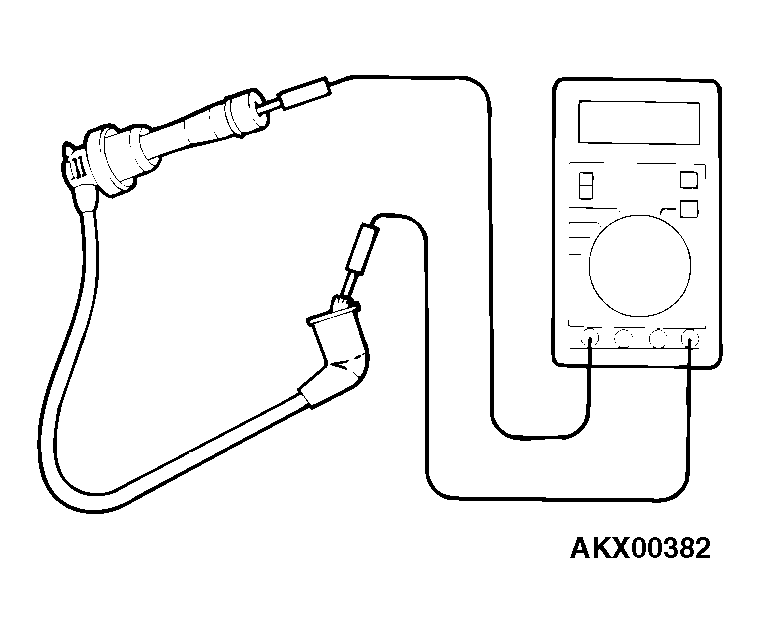

Fig 1: Measuring Resistance Of Spark Plug Leads
G04271565Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
