Removal And Installation < 2.4L Engine >

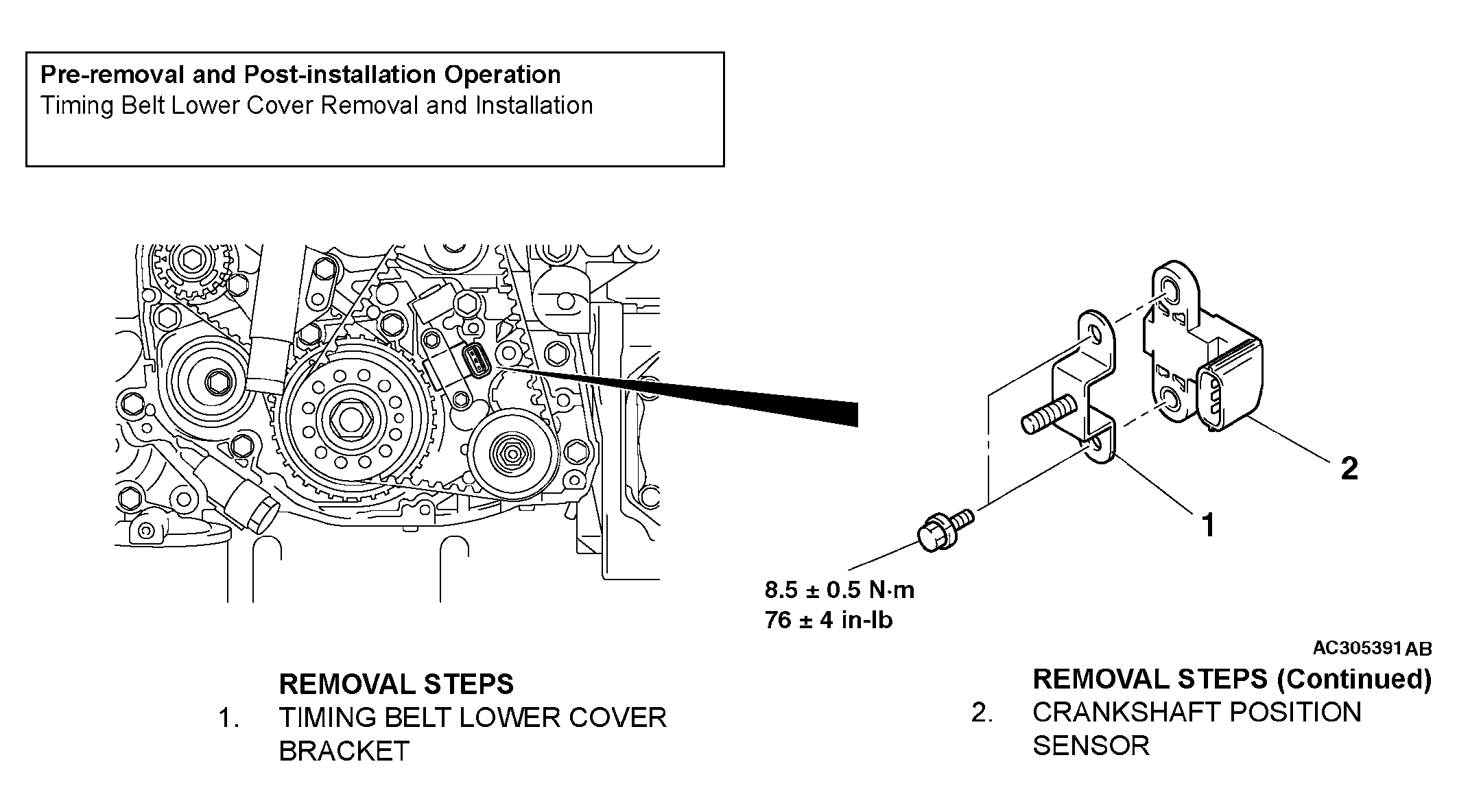

Fig 1: Removing/Installing Crankshaft Position Sensor (2.4L Engine)

G04271582

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
